Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)
American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 211

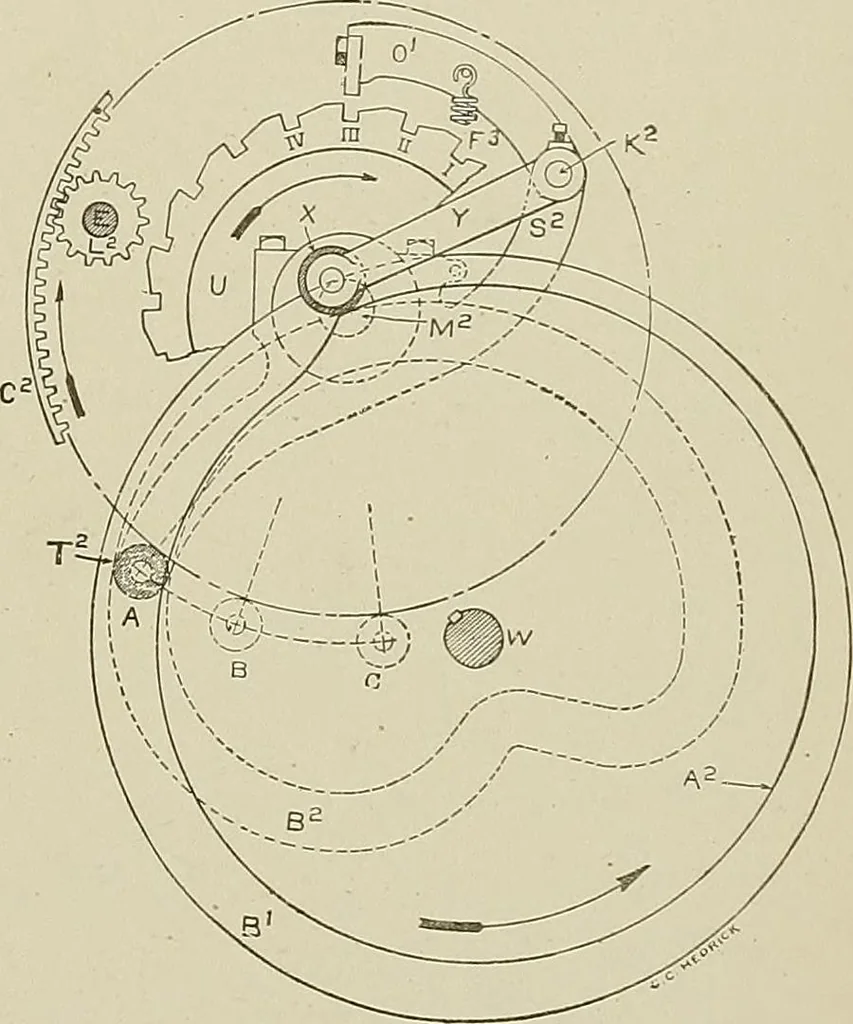

Fig. 129. Fig. 130. Diagrams of Detaching Roll Cams. In Fig. 129, the cams are shown as having completed aboutthree-quarters of a revolution. The cam roll, T^, is on the smallestdiameter of the groove at C. The pawl, which is shown just en-tering notch III in Fig. 128, has engaged the whole depth…
Textile fabrics · Textile industry
