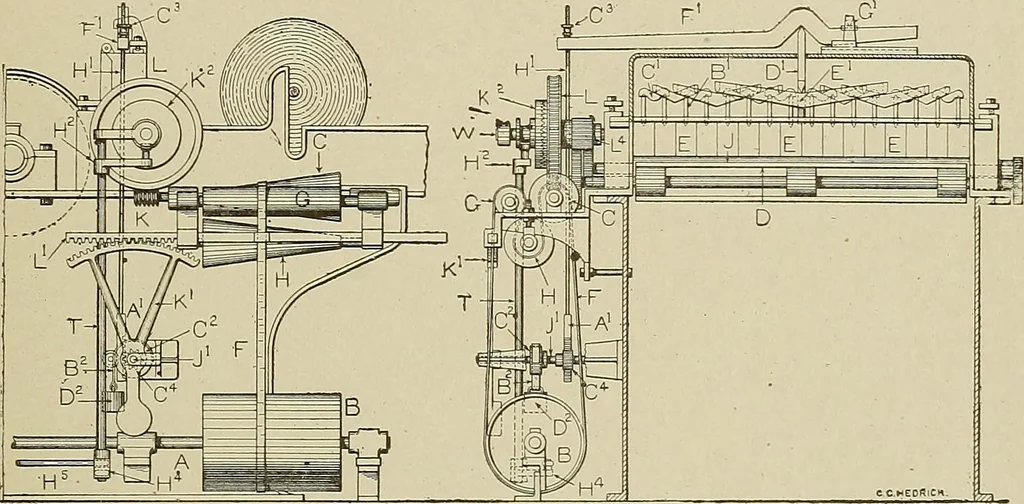

inide]-them, the quadrant shaft is turned slightly, and by the connectionsjust described., the cone belt is moved to a different position on theface of tlie cone, changing the speed of the evener and feed rolls.This will continue until the thick or thin place, as the case maybe, has passed by the… … Fig. 38. Section and Side Elevation of Evener. for Picker. In order that the sectional plates shall not rise too easily, adrum, or weight pulley, C^, is fastened to the quadrant shaft.Around this pulley, and fastened to it, passes a strap, B^, the lowerend of which is connected to a weight hook…
