Cyclopedia of textile work; a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)
American School of Correspondence · Chicago, American School of Correspondence · leaf 132

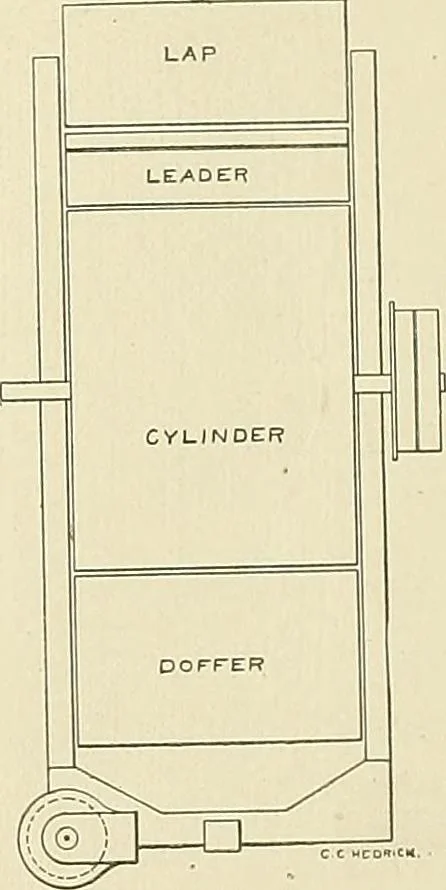

e driving of the feed roll, doffer, calender roll andcoiler is controlled. When it is desired to stop these parts,the lever i* dropped which disengages the pinion, V^, from thegear, Q. The calender rolls are driven from the doiier gear, Q, by thegears U, H^ and O. The gear, U, is called the rifle… … Fig. 61. Plan of E. H. Card. 118 COTTON SPINNING. 81 necessary when is it desired to stop the calender rolls and coiler and still have the doffer turning. Coiler. We will direct our attention now to the gearing of the coiler, a vertical section of which is shown in Fig. 62. The cotton, after…
Textile fabrics · Textile industry
