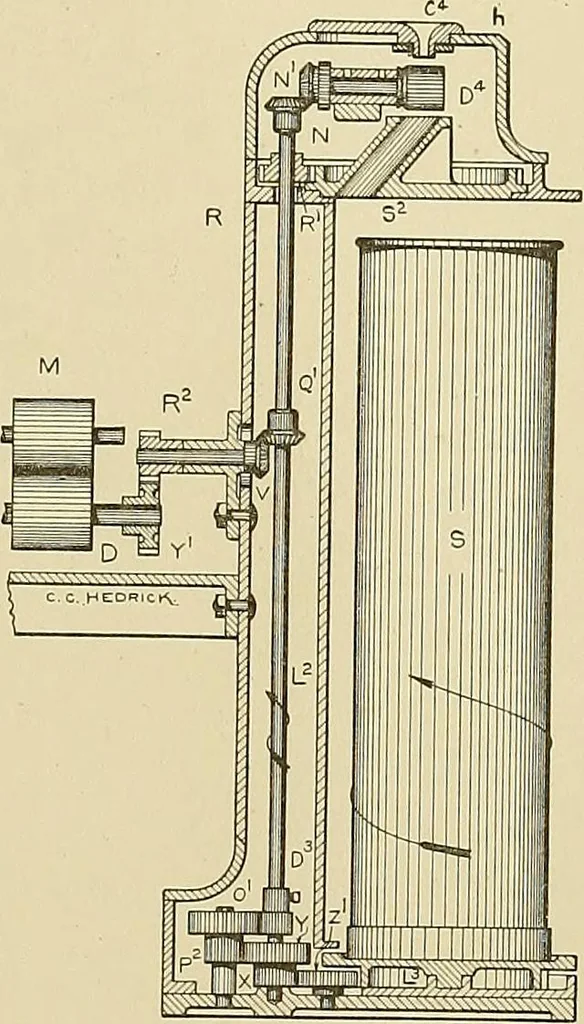

le, \)j which it is re-volved slowly in the oppo-site direction from the.coiler gear and just fastenough so that the coilsshall not overlap) andcrowd each other. On the under side of the turn-table is a gear, driven from theupright shaft, L2, by the gears D^, 0\ P2, Y, X and Z^. Qiand P2 are… … Fig. 62. Vertical section of coiler. IW 82 COTTON SPINNINO. Fig. 64 is a plan of the eoiler top. The trumpet, C*, is madein the form of a large, flat plate whicli cover.s ahno.st tlie whole of_^ the top. When it becomes necessary to oil the calender roll bearmgs, it can bedone easily by pushing the…
