Cyclopedia of textile work; a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)
American School of Correspondence · Chicago, American School of Correspondence · leaf 266

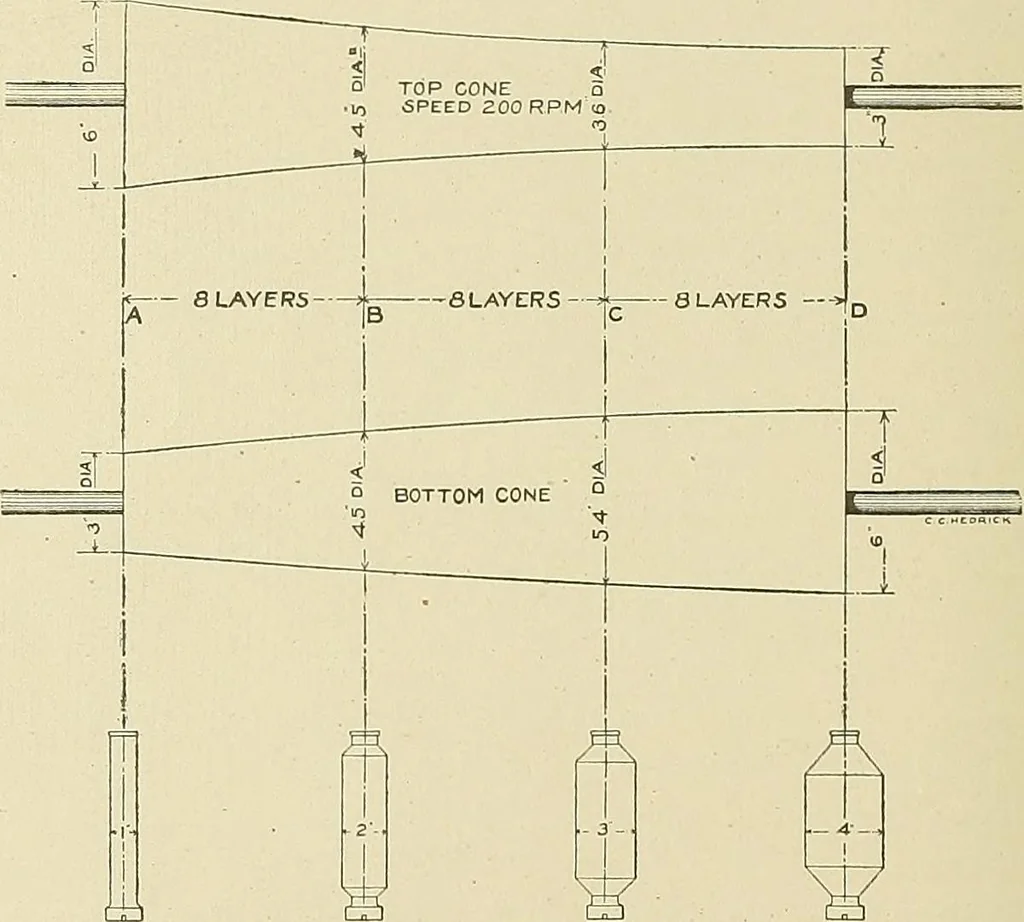

top cone concave and thebottom cone convex. 339 198 COTTON SPINNING The cone belt is upon the large end of the top cone when thewinding begins and, as each successive layer of roving is added, it isshifted a little distance along the cones, according to the hank roving,being spun. With coarse… … BOBBIN 3DIA.SPEED 400R.P.M. Fig. J66. Diagram of Cones. BOBBIN 4 DIA.SPEED300r.P.M. stages of building, are shown in Fig. 166. The diameter of the emptybobbin is one inch and that of the full bobbin, four inches. The rov-ing, which we will call one-sixteenth inch in diameter, will add one-eighth of…
Textile fabrics · Textile industry
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
