Cyclopedia of textile work; a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)
American School of Correspondence · Chicago, American School of Correspondence · leaf 85

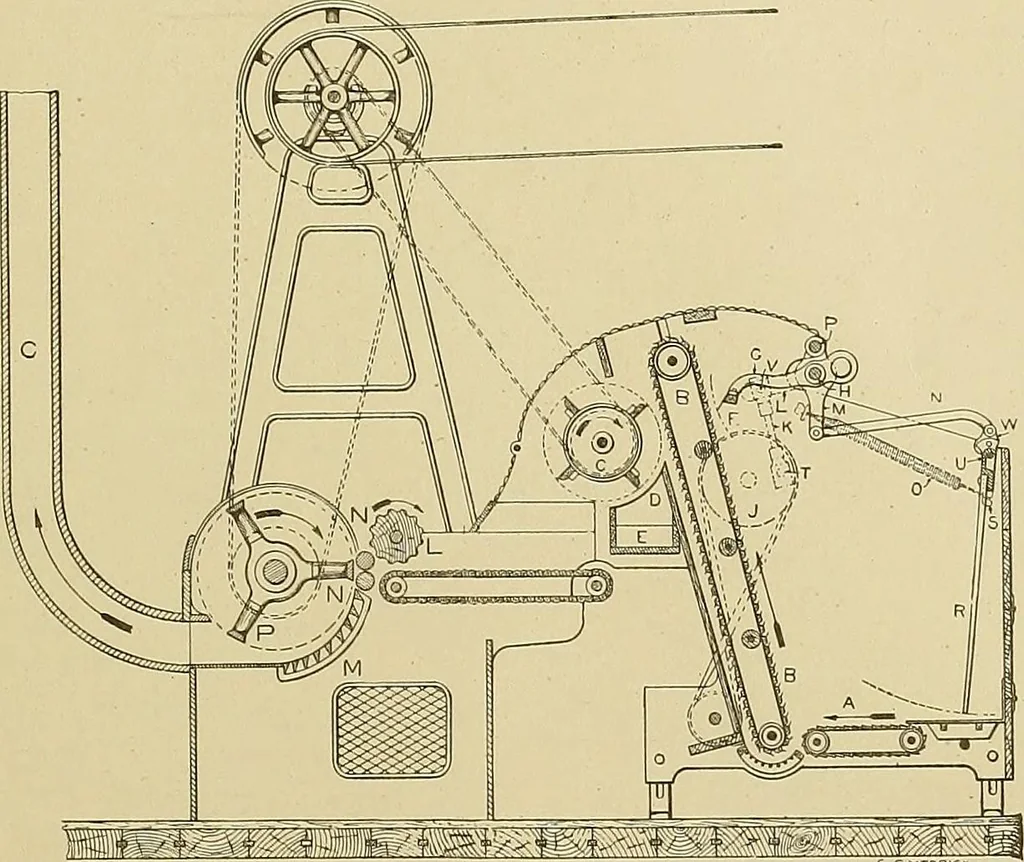

s feeder is provided with COTTON SPIiNNING. 39 a comb, F, which is carried by several arms, G. These arms arefastened to the comb shaft, H, which is hung from the shaft, P, by-swing stands, M. The oscillations of the comb are obtained froma pulley, J, in one arm of which is fastened a stud, T. This… … Fig. 28. Automatic Feeder with Evener Attached. The device for i-egulating the feed is constructed in the fol-lowing manner: In the back part of. the hopper is a rack, R, con-structed similarly to a rake, with very long tines, which is sus-pended from each side of the hopjjer by studs, U, which…
