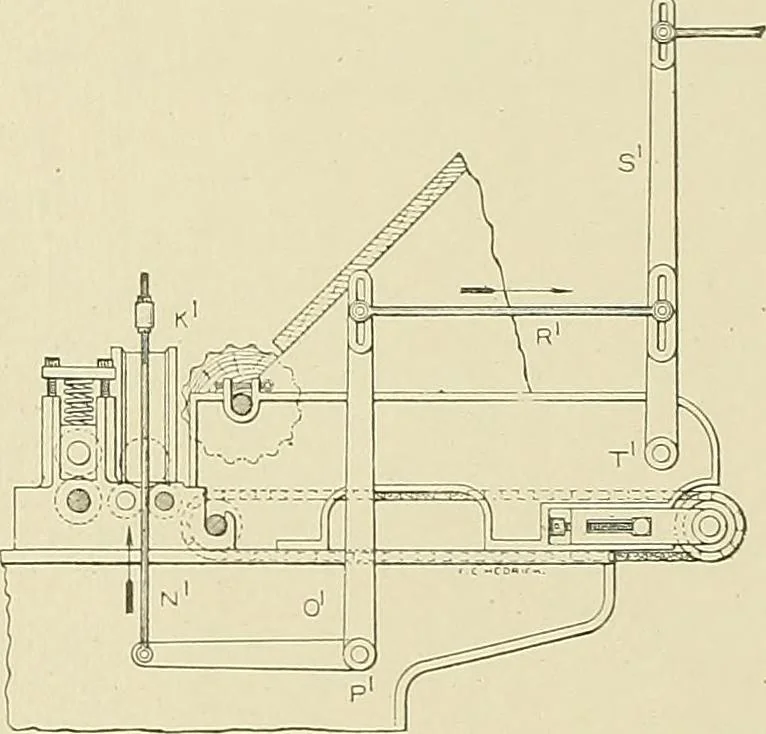

of the evener case is the evener lever, K^,which is connected to the main saddle by the stem, L^. The ful-crum of the lever is at M^ and the long end is connected to a rod,Ni. Fig. 35 is a side elevation showing the connections betweenthe evener lever and the cone-belt guide. It will be seen that… … Fig. 3-5. Elevation Showing Connections from Evener to Cone Belt. latter is a stud, Ti, which forms a fulcrum about which the leverturns and at the upper end is connected the cone-belt guide, Wt.When the evener roll is raised, by reason of an unusual thicknessof cotton going through, the evener…
