Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)

Chicago : American school of correspondence · leaf 130

An illustration from Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1907, leaf 130

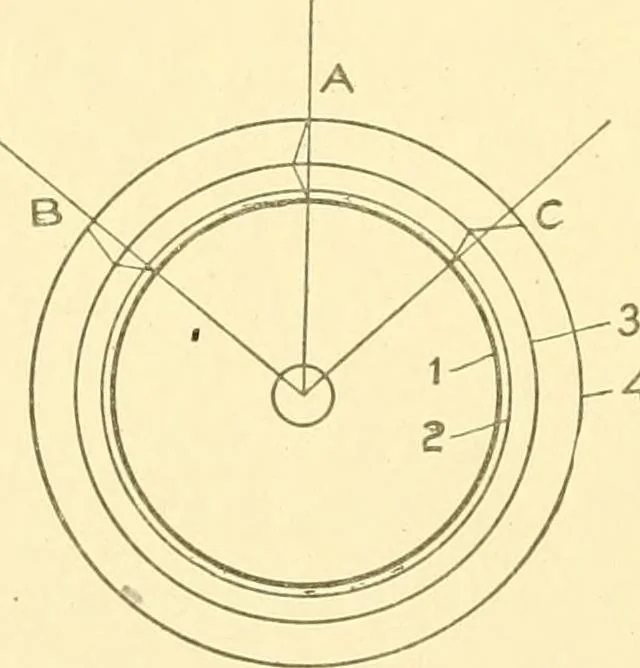

rd clothino; shouldstand is shown in Fig. 63. The inner circle 1 represents the cir-cumference of the cylinder. The space 1-2 is the foundation ofthe clothing. Line 3 is the correct place for the bend, and line 4is extremity of the wires after grinding. The wire on the radialline A is the correct… … Fiff. Gi; 110 WOOLEN AND WORSTED SPINNING 99 roll when in their normal position. This position is on the radiallines. Whichever way A is bent in the foundation, its pointcomes within the circle 4. C, on the other hand, is very badlyset, because when bent back its point would be outside of circle…

Textile industry · Textile fabrics
