Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)
Chicago : American school of correspondence · leaf 288

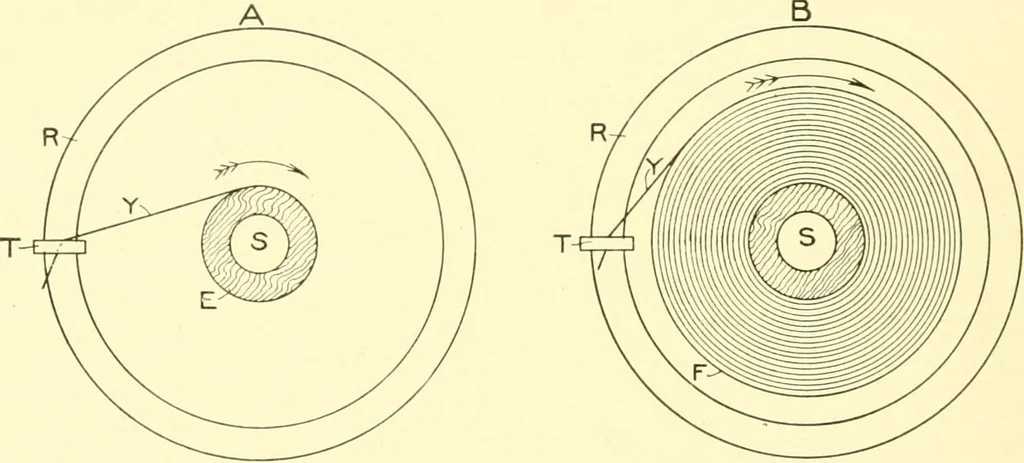

meter (5.49 inches cir-cumference). If the traveler is held stationary and the empty bob-bin given one revolution there will be wound 2.35 inches of yarn,while with the full bobV^in one revolution will wind 5.49 Inches ofyarn. If the rotations of the traveler were not retarded, it would… … Fig. 149. Diagi-am Showing Differenee in Tension. per inch will be produced, but as the traveler falls behind the bob-bin only enough to cause the yarn to be wound, the difference in thetwist is not appreciable. If the bobbin makes one hundred revolutions and in the sametime the front rolls deliver…
