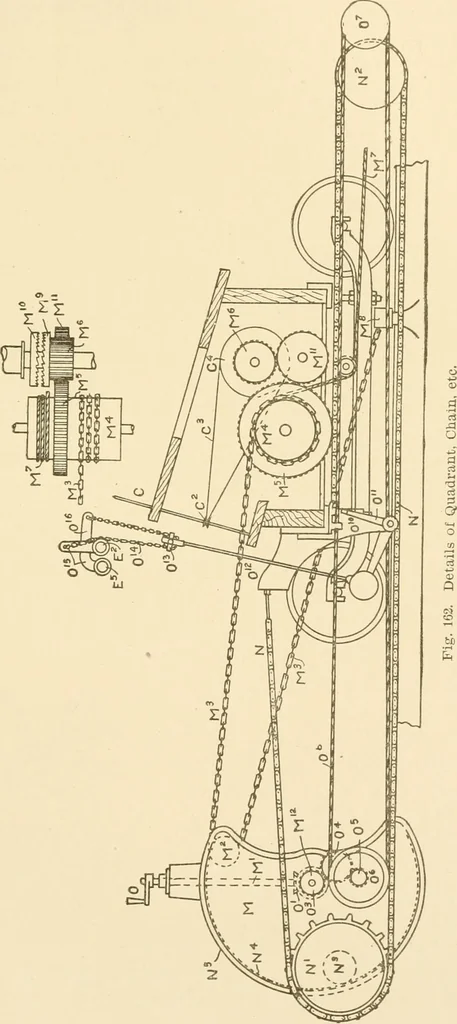

l be wound from the drum M^ causing the spindlesto revolVe the greatest number of times. This is due to the fact thatthe length of chain unwound will be nearly equal to the stretch; i. c,seventy-two inches. If pulley M^ were wound to the top of the screw, it will be readilyseen that less chain will… … 271 250 WOOLEN AND WORSTED SPINNING Mjri of the spindles. This shows how the number of revohitions may be varied. The method of turning the screw, thereby raising M^ is as follows: Attached to the bottom of M^ (see Fig. 163) is a bevel gear which meshes with another bevel gear attacl:ied to gear…
