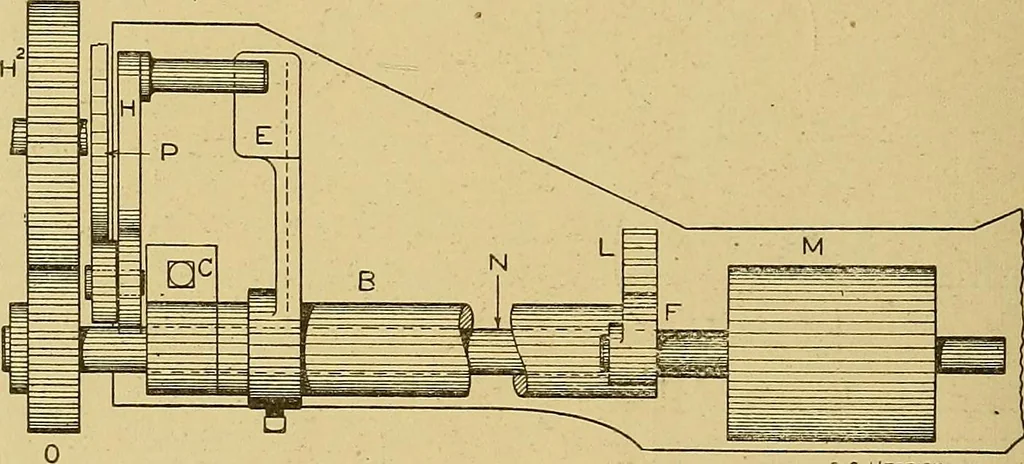

h would turn the sleeve,B, and with it the lever, E. This would cause the lever, H, to as-sume the position shown in Fig. 67 and to drop the barrow bar,P, and disengage the gears, driving the doffer. • A plan of this deviceis shown in Fig. 68. Flexible Bend. As the flats pass forward over the… … c c HeoRict^ Fig. 68. Plan of calendai- roll stop motion. and the cylinder is maintained and upon the correct setting, ordistance between the surfaces, depends, in a great measure, thesuccessful working of the card. If the flats are set too far away,it will be found that the sliver contains little…
