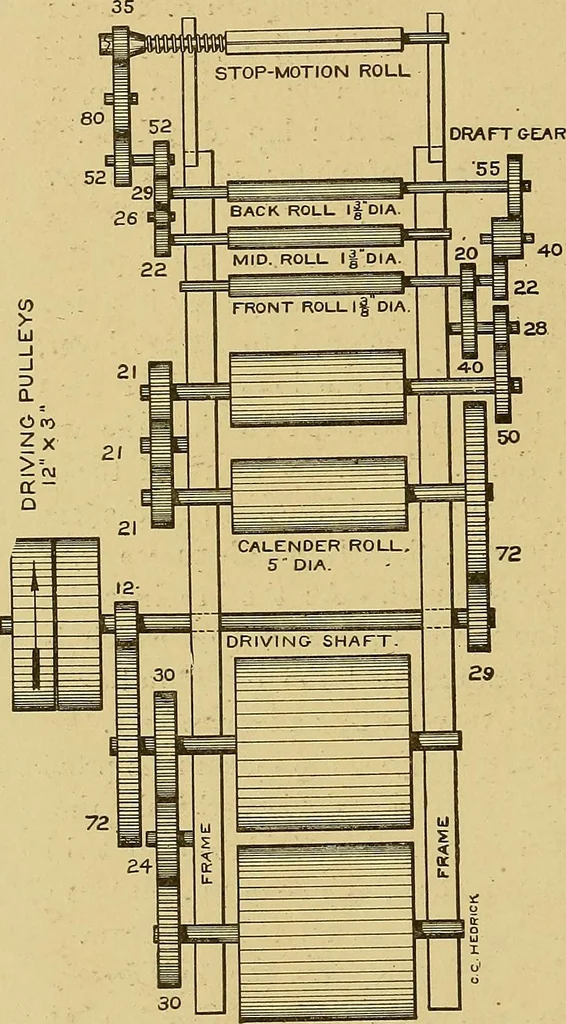

arer,D1. In addition to theirown weight, the top cal-ender rolls are leverweighted, the rod, Ei,connects the yoke whichis over the bearings ofthe top rolls with theweight lever, Ni, uponwhich is the weight, P^. The fulcrum for the weight lever is a projecting lug, Si, U[)on the frame of the… … LAP ROLU12 DIA. Fig. 109. Diagram of Gearing ofSliver Lap Machine. 170
