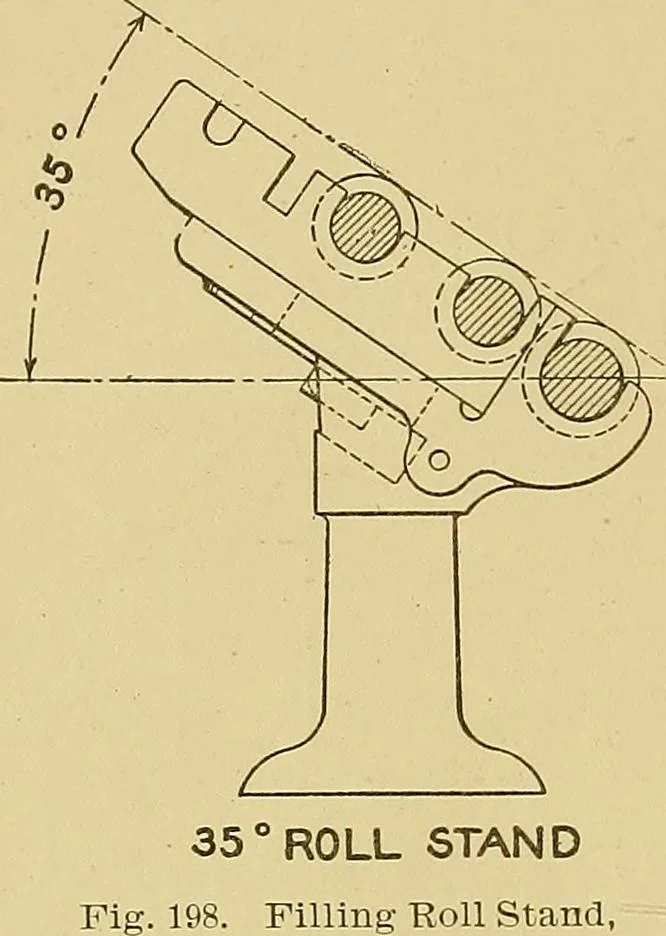

Fig. 197 30° ROLL STAND Combination Roll Stand,30° Pitch. 279 238 COTTON SPINNING … ROLL STAND Filling Roll Stand,35° Pitch. side to side of the frame and is connected to the top rolls by hooks, F, and stirrups, E. Holes are drilled in the roller beams to allow the hooks to connect with the stirrups. The hook shaped projection on the top of the stirrups is to allowthe operative to…
