Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)
American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 127

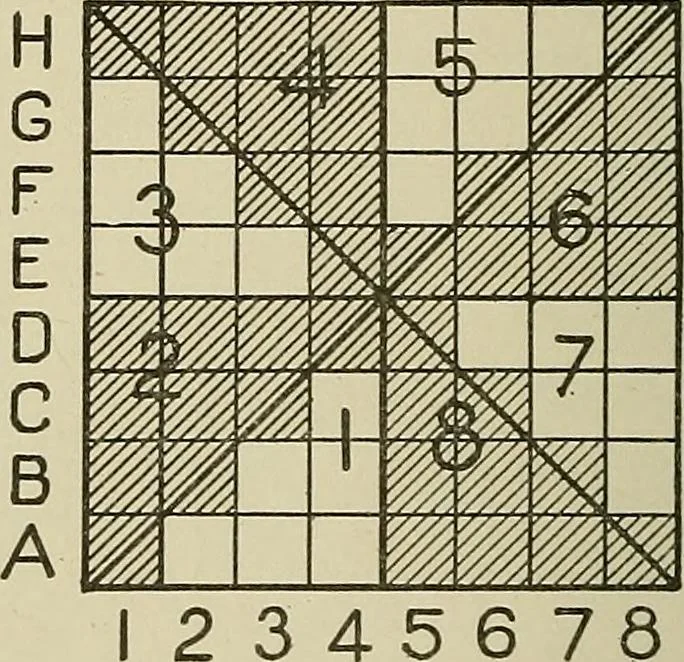

number each triangle in rotation 1, 2, 3, 4, 5, 6, 7, 8.To design an oblique rib weave, mark in each uneven numberedsquare the warp-effect rib weave (see Fig. 141), and in each evennumbered square the filling-effect rib weave, which produces thecompleted oblique rib weave (Fig. 142). This procedure… … 3 45 6 78 Fig. 140. 110 TEXTILE DESIGN. 101 All weaves of this class are designed either commencing ribeffects alternating with filling or the reverse. These weaves are also combined with plain rib weaves forproducing checks, usually using the oblique rib weave as thegroundwork cf the check, and…
Textile fabrics · Textile industry
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
