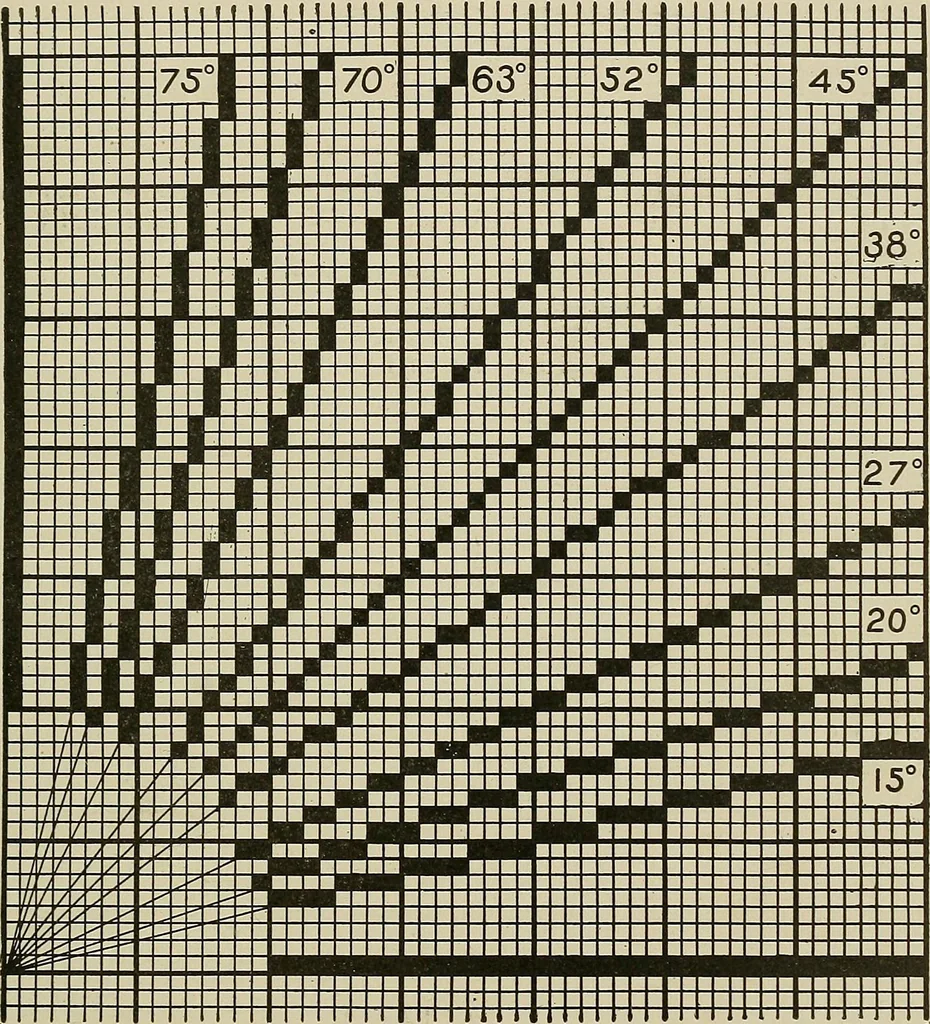

Fig. 26. 2g TEXTILE DESIGN. 15 through, and, according to the number of threads, open out thespace between the lines of twill. Make light and heavy lines andvary them until there is no further room for variation, observingthe repetitions of the pattern in the reverse order, both in the … Fig. 27. quantity of material which comes to the surface, and in theposition of the twill. Diagrams for illustrating the construction of reclining andsteep twills are shown in Fig. 27. 23 16 TEXTILE DESIGN. Steep and Reclining Twills. . The 15° reclining twill is formed by moving 4 points, Fig. 28»…
