Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)
American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 76

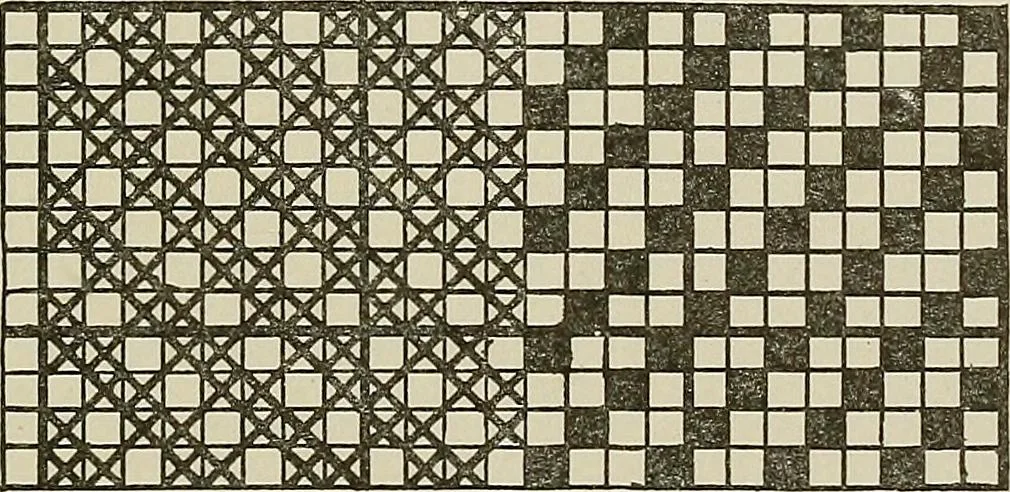

Fig. 83. Fig. 84, should be raised and the greatest number depressed in weavingspecial makes of cloth. In this manner the wear and tear of theyarn is much reduced; the only objection to this, being that in awarp flush face weave, the surface of the goods is woven facedown and cannot be seen by the… … Fig. 85. thread. The 5-harness twill, warp flush, is formed by the fill-ing passing over only 1 thread of warp, interweaving at thesecond thread and passing under 4 warp threads. The 5-harnesstwill, filling flush, is exactly the reverse of the warp flush.Fig. 86, plain weave; Fig. 87, 3-harness…
Textile fabrics · Textile industry
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
