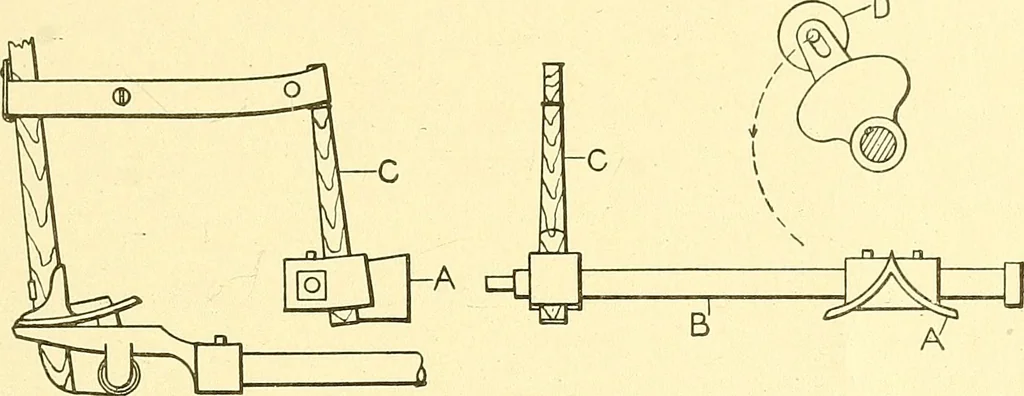

ick will bind oa the stud and eitherbreak the stud or the arm. When the crank shaft is a little overthe top center going back, have the sweep stick in a straight linefrom the picking stick to the arm. Set the shoe so that whenglancing down into the loom the top point of the shoe will standback from… … Fig. 85. Bat Wing Picking Motion. The reason why no rule in regard to the number of inches fromback girth to shoe has been given (though some claim it is best)is because no two makes of looms are alike, and to fix the shoe 7^-inches from the socket, would result in having the shoe too farfrom the…
