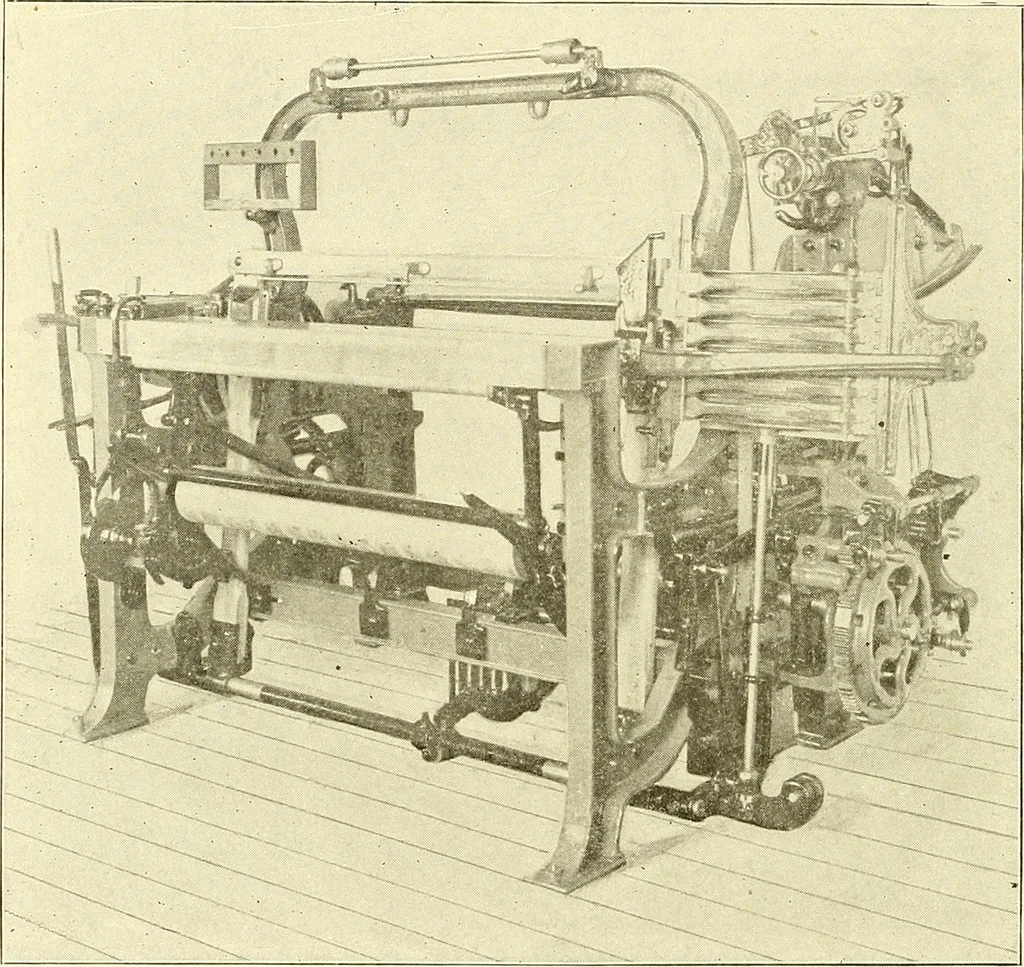

with the spring^lamp, L, gripping a stud fixed to its outer end. The lower endof the clamp is attached to the bottom of the box liftmg rod, N. 195 182 WEAVING A small finger called the check finger, is provided to hold eachcam in place, being held in contact with the small studs by meansof a spiral… … Fig. 119. Crompton Gingham Loom. projection fills up the blank space on the gear. Then as the seg-ment gear is advanced by the pin gear, the teeth engage with thoseof the small segment gear, turnmg it half around, and consequentlythe cam at the end of the shaft wnll be given a half turn,…
