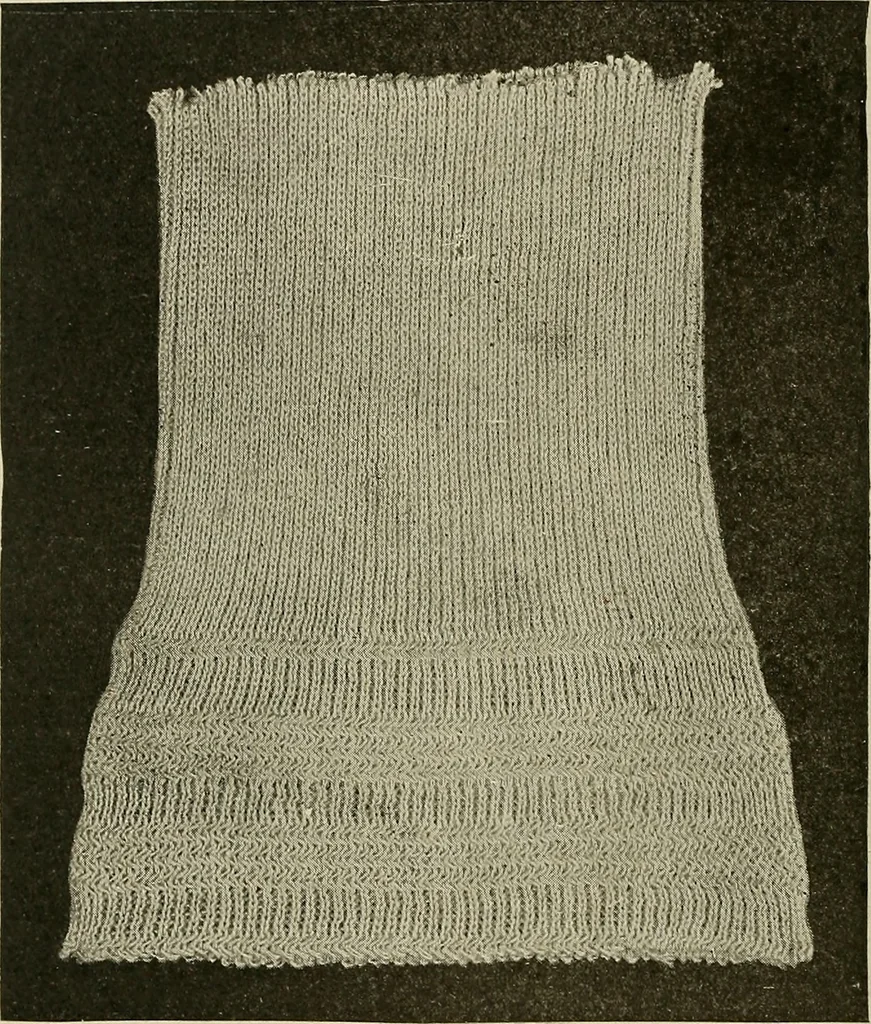

Fig..89. Cuff-Eacked Back. 169 154 KNITTING Fig. 92 represents the sweater machine tipped partly over, inorder to give a more comprehensive view of the top of the machine,and shows why the name Flat Head Circular Knitting Machinewas so distinctively applied to it. Method of Driving. The bed plate… … Fig. 90. Circular Ribbed Sweater Collar, Racked Courses. sion A* to furnish bearings for the main shaft, which is provided withtight and loose pulleys, and has a bevel gear, or pinion, which engagesthe teeth of the dial cam plate A^ to rotate it. The bolt A^^ on theyoke A^ enters a link A^*, which…
