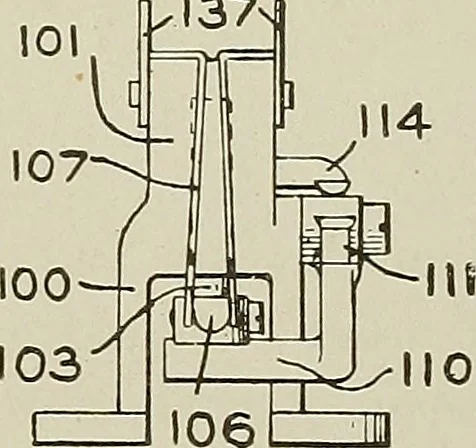

70. The yarn-changing devices are carried by the arm 135. Theupper surface of the outer end of the arm 135 is formed with guideways(Fig. 151) for two slides 138 and 139, one having a yarn-guide eye 140at its inner end and a pin having a roller 141 at its outer end, and theother slide having a… … Fig.160. 265 248 KNITTING 3-36 Lever 145 is pivoted to tne guard-ring arm between the two slides;and when one slide is pushed in, its arm pushes the other slide out.The inner ends of the slides each have a stop 146, to limit their out-ward movement. The curved web-guide 149 (see Fig. 151) is formed…
