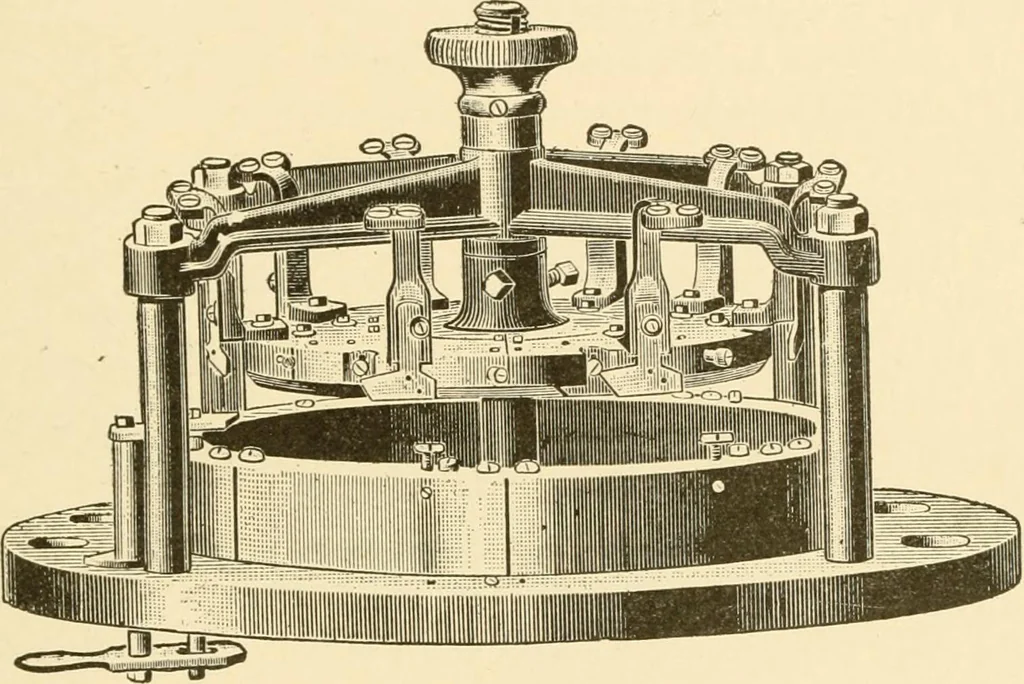

An illustration from Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1907, leaf 155
n the right housing plate, and at the outer end in a bear-ing in the bracket D* fixed to the same housing. The power is trans-mitted by a belt, which may be shipped from one pulley to the otherby means of the shipper Dl The hand wheel I) is fixed to the drivingshaft for use when the needle cylinder… … Pig. 68. Body Machine Head. operating the movable cams of the cam dial plates, to move the needlesfarther out, or to draw them in, to narrow^ or widen the fabric forshaped goods. In the bracket N, fixed to the left housing, is a shaftN on one end of which is fixed a ratchet wheel N and back of…
