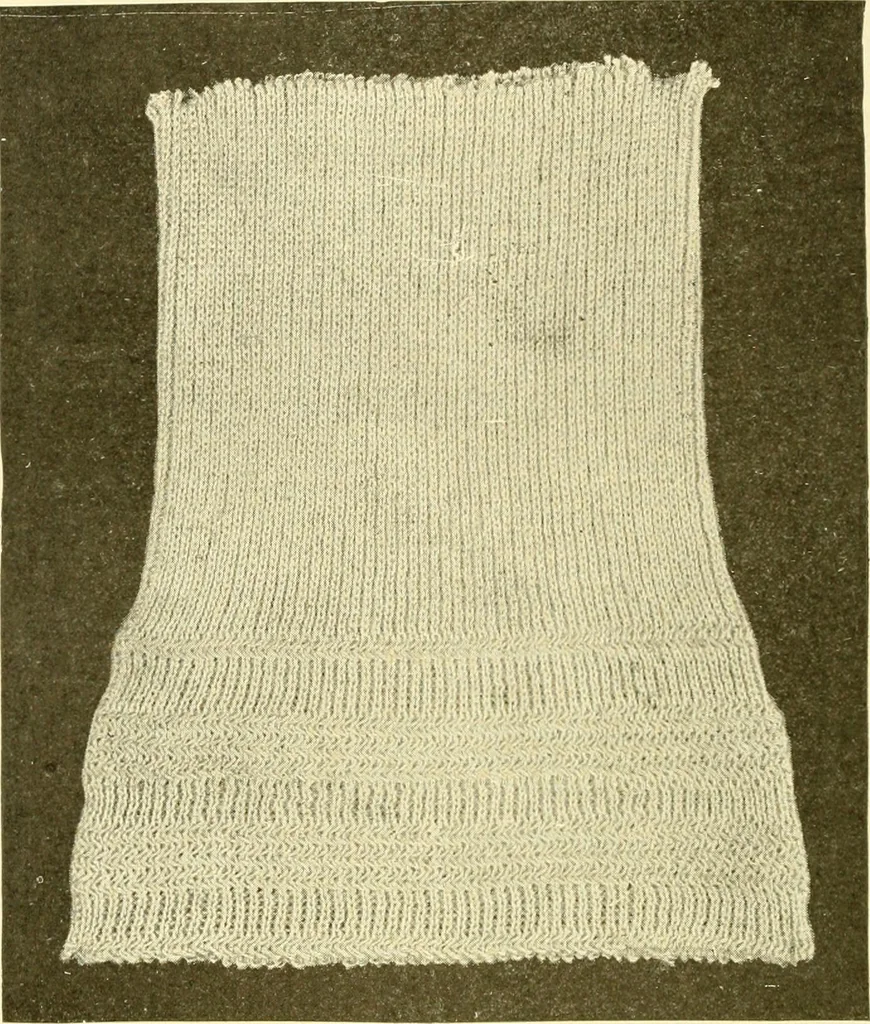

Fig.i Cuff-Racked Back. 160 154 KNITTING Fig. 92 represents the sweater machine tipped partly over, inorder to give a more comprehensive view of the top of the machine,and shows why the name Flat Head Circular Knitting IMachinewas so distinctively applied to it. Method of Driving. The bed plate A,… … Fig. 90. Circular Ribbed Sweater Collar. Racked Courses. sion A to furnish bearings for the main shaft, which is provided withtight and loose pulleys, and has a bevel gear, or pinion, which engagesthe teeth of the dial cam plate A* to rotate it. The bolt A^ on theyoke A^ enters a link A, which is…
