Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)
Chicago : American school of correspondence · leaf 191

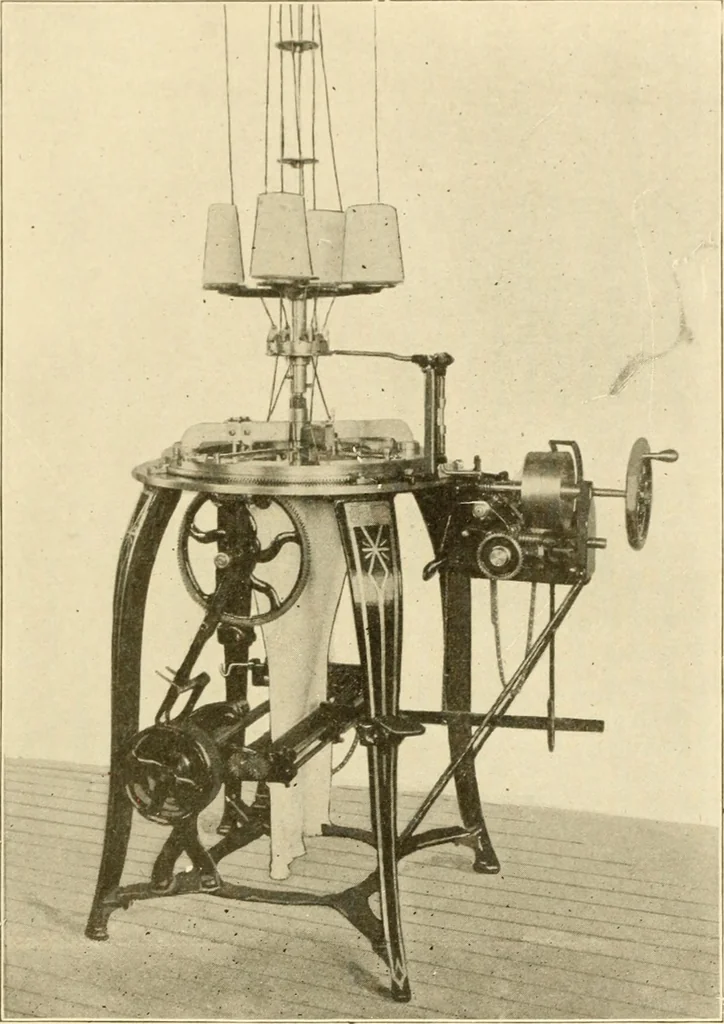

KNITTING 155 ing fron? it is the central shaft A (See also Fig. 94), having the attach-ed collar A on which rests the huh of the large ring-like washer Bloose on the shaft. The needle cylinder B is supported on the … Sweater and Cardigan Jacket Machine. washer B, and prevented from rotating with the shaft by its projectingrib a engaging the fork B^. When the cam plate is rotated, the hubcarrying the cams turns in unison with it and the needles in the sta-tionary cylinder are thereby actuated to form their…
Textile industry · Textile fabrics
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
