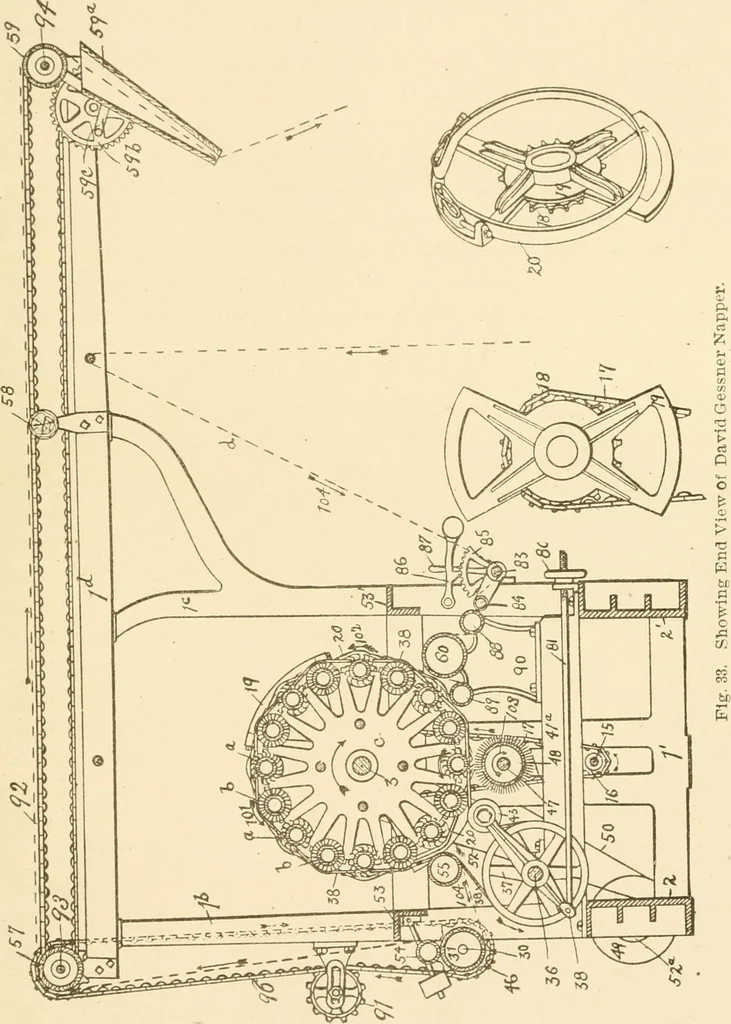

respectively, with the swing-arms 82, which are loosely mounted onshaft 36 and carry on their free ends the idlers 43. The broken line d indicates the cloth being treated. In leavingthe napping-roUs it passes under a roll 55, fast to the two idlers 39, 39,and turncfl with them at the same surface… … upward and over the driven feed roll 57, over the idler 58 (overheadof the operator) and driven feed roll 59, whence it is delivered 368 68 KNIT GOODS FINISHING through the folder 59^ behind the operator. The chain 90 is heldtaut by the idler 91 and drives the shaft 93, to which the feed roll 57is…
