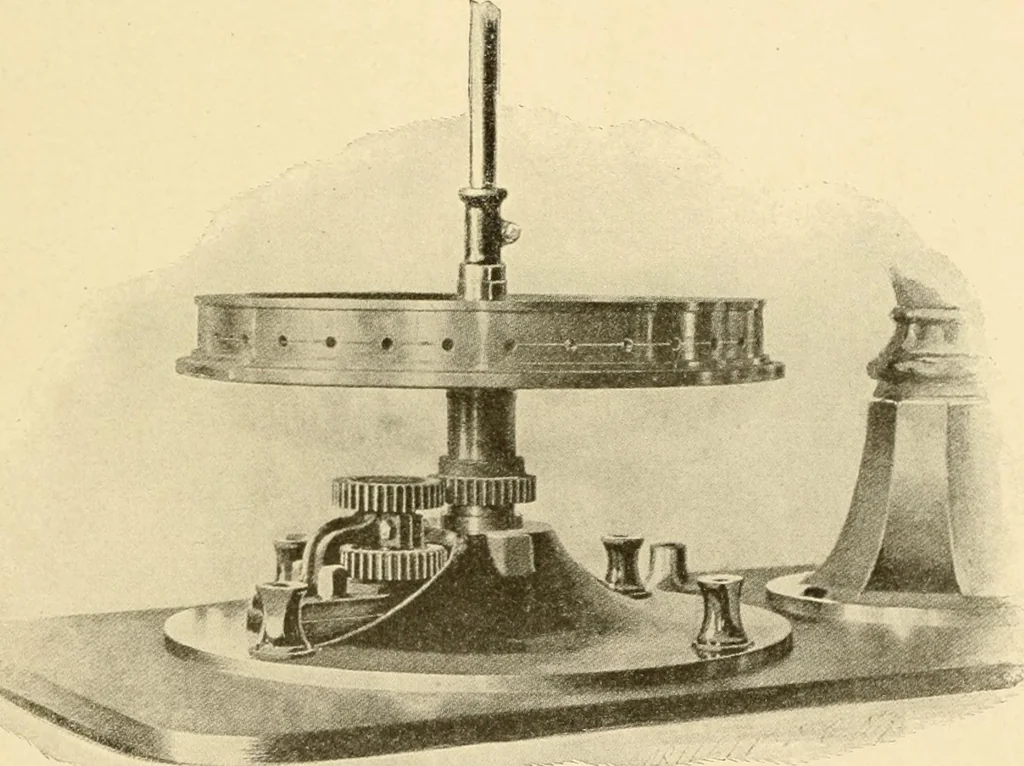

lley orback at the will of the operator; the tight pulley drives the coun-ter shaft 18, to which is fastened the bevel pinion 19, with setscrew 20; bevel pinion 19, meshes with bevel gear 17, whichdrives shaft 10, at the upper end of which is fastened the doublepinion 8 and 9, shaft 10, runs in… … Fig. 16. Cyliuder and Driving Gears. The Cylinder. The cylinder is shown in detail in Figs. 16 and17. The holes in the periphery of the cylinder are for the clampscrews to tighten the clamps that hold in place the leads contain-ing the needles. The drawing on either side at the top of Fig. 15show…
