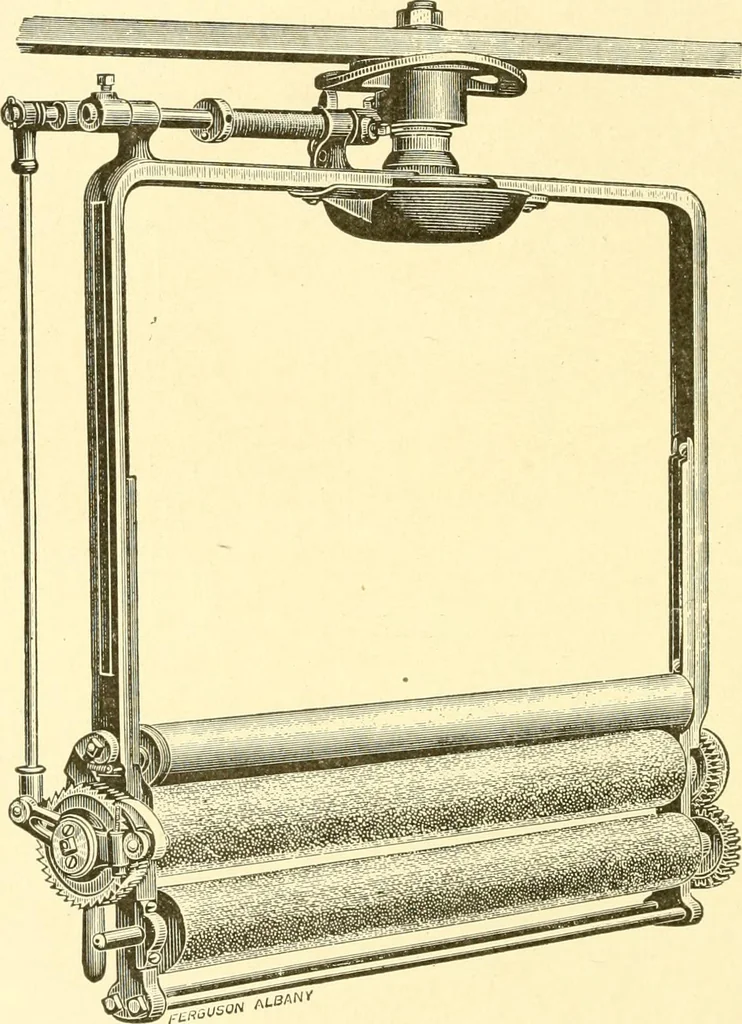

the shipper. The bevel pinion 11,on top of the frame takes its motion from the standing gear 9, onthe crosstree and by means of the crank 32, and spring connectingrod 33 and 31, reciprocates the dog 24, engaging the ratchet gear i:J . 38 KNITTING. 17, on tlie end of the upper quartz covered roll… … Take-Up, Outside Drive. the cloth while being knitted, and is a most important factor inproducing good cloth with a minimum of broken needles, detaildrawing is given in this diagram. The crank connection 32, is attaclied to the upper end of theconnecting rod 31 ; on the other connecting rod 31, is…
