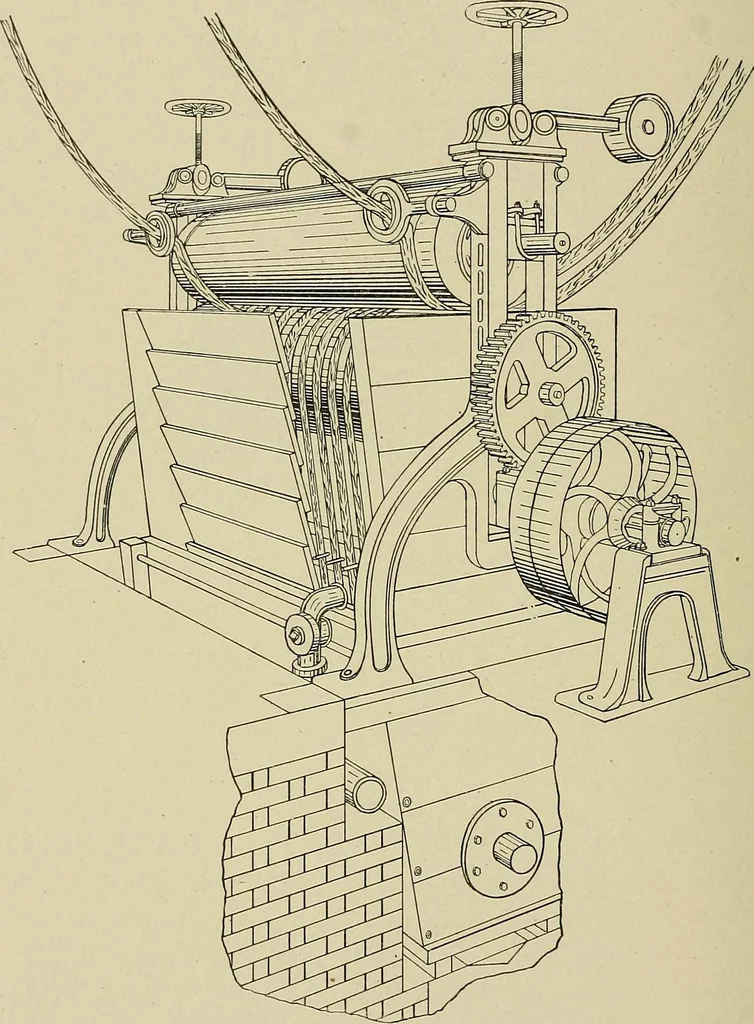

emuch space and be of but little value. We will therefore speakonly of the most important forms and give descriptions of some ofthese in use at the present time. In general, kiers may be divided into two classes:(1). Open or Low Pressure Kiers.(2). Closed or Pressure Kiers. 71 62 TEXTILE CHEMISTRY… … Fig. 30. Washing Machine. perforated bottom AA, abont 18 inches above the true bottom.It contains a large center pipe or well B B, which is open at thebottom C, and at the top D. Through this large pipe B B, runsa smaller pipe E, througli which steam is passed in the direction 72 TEXTILE CHEMISTRY…
