Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)
Chicago : American school of correspondence · leaf 121

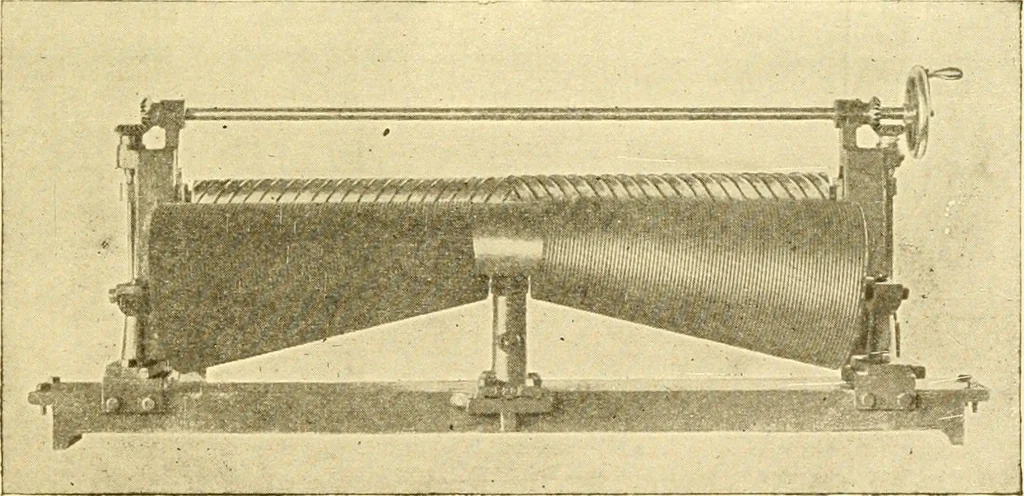

Fig. 47. Cyliudncal Scutcher. the last traces of acid or the material will become tendered whendried. 113. Finishing. After the final wash the cloth is hydroextracted or passed between the squeeze rolls and then broughtagain to the fullwidth. It is sometimes opened out by hand, but … Fiff. 48. Couical Scutcher. a machine called a scutcher is more commonly used for tliis pur-pose. Scutchers vary in construction and working detail but allinvolve the principle of producing a stretching of the cloth fromthe center toward the edge by passing it over spirally grooved or 103 94…
Textile industry · Textile fabrics
