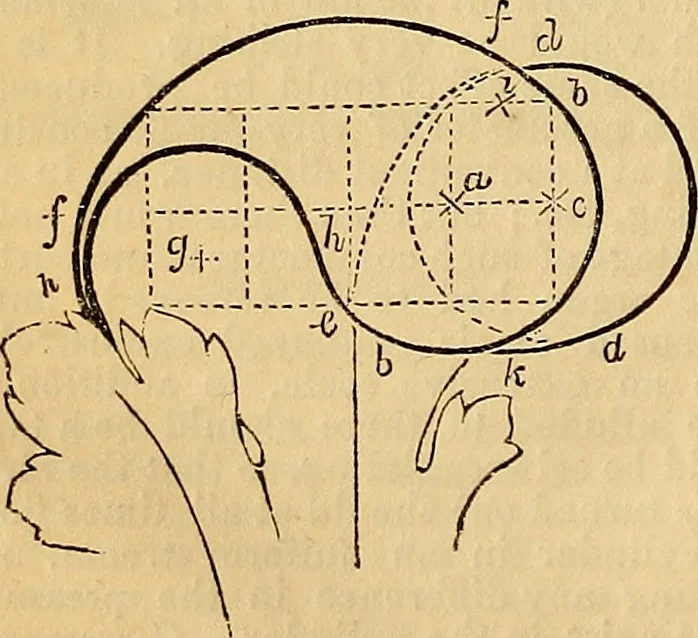

. The manner of drawing it is to place thepoint of the compasses on the perpendicularline at a, and to strike the semicircle asjdotted; should the bend not require to be soIgreat, take any point higher up on the samelline, and it will give the desired form ; but atjthe same time care must be taken… … Fig. 7. To draw a side view, first form two squares,and then divide them into two parts eachway ; the point of the compasses must now beplaced at a, and the semicircle b b struck; fromthe point e then strike the arc //, and fromthe point g strike the semicircle h h. To forma perspective or…
