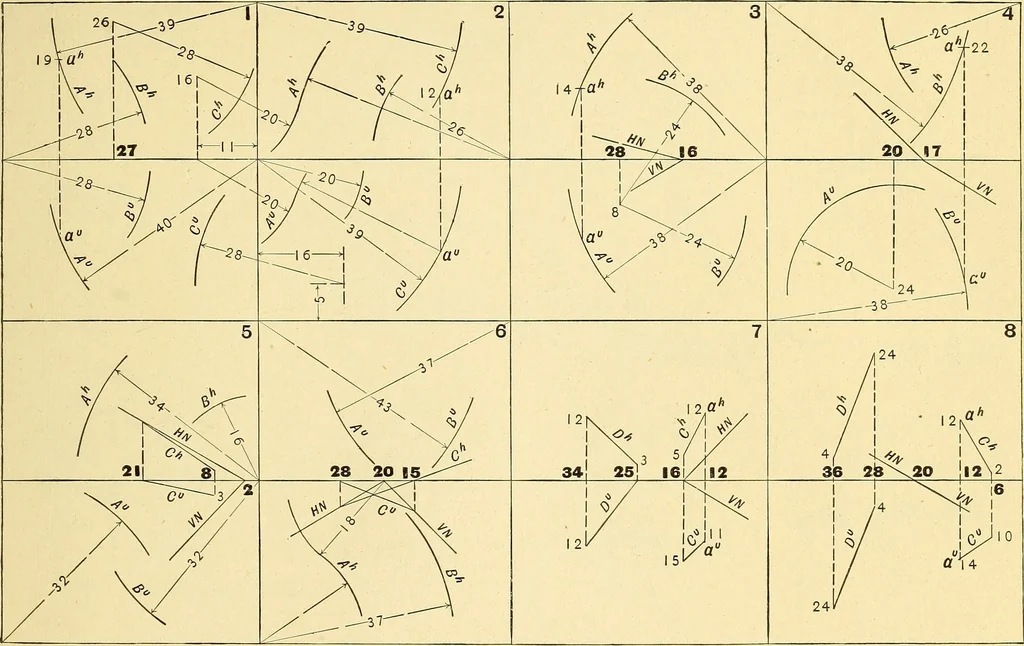

n the elements revolve the plane of the right section parallelto P, and measure the required distances in the profile projection, or end view. Develop as in Art. 125, page Draw and develop the dome and connection sheet, or slope sheet, of a locomotive boiler. Unit of measure, | inch. Space required… … Problems 1, 2. Draw an element of the -w^arped surface through point a. (Art. 145, page llO.) Problems 3, 4. Draw an element of the warped surface through point a. (Art. 146, page 111.) Problems 5, 6. Draw an element of the warped surface parallel to line C of the plane director, N. (Art. 147, page…
