Descriptive geometry for students in engineering science and architecture; a carefully graded course of instruction (1915)
Armstrong, Henry F. (Henry Fry), 1868- · New York, J. Wiley & sons, inc.; [etc., etc.] · leaf 105

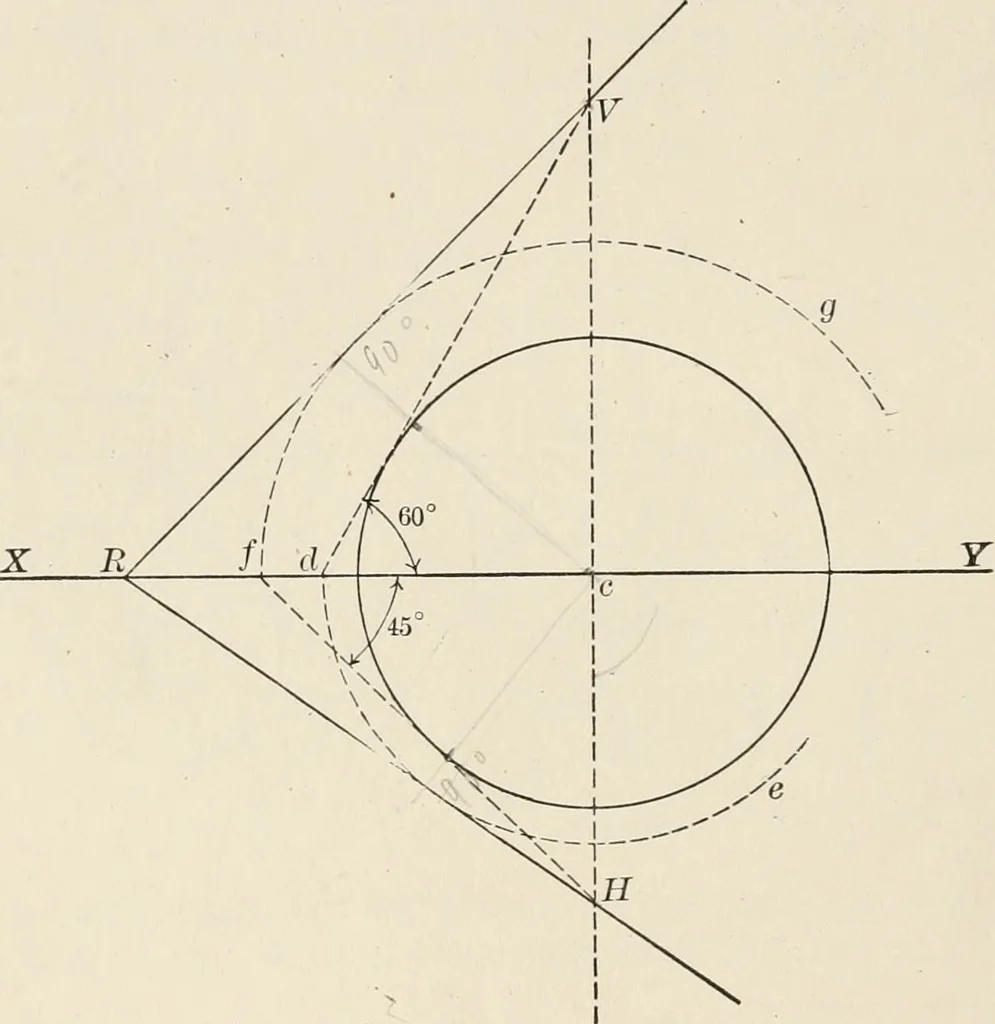

ction are given. The previously discussed and more com-monly used method was explained in Part I, Section 9, and was shown to dependon the projections of a Hne set up at angles complementary to those of the requiredplane, the traces of the required plane being then drawn perpendicular to the… … Fig. 96. Suppose the required plane is to have angles of 60° to the H.P. and 45° tothe V.P., then a vertical cone to envelope the sphere, with its generators at 60*,to the H.P. and its apex therefore at V in the V.P., will have part of its circularH.T. represented by the arc de, and any plane,…
Geometry, Descriptive
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
