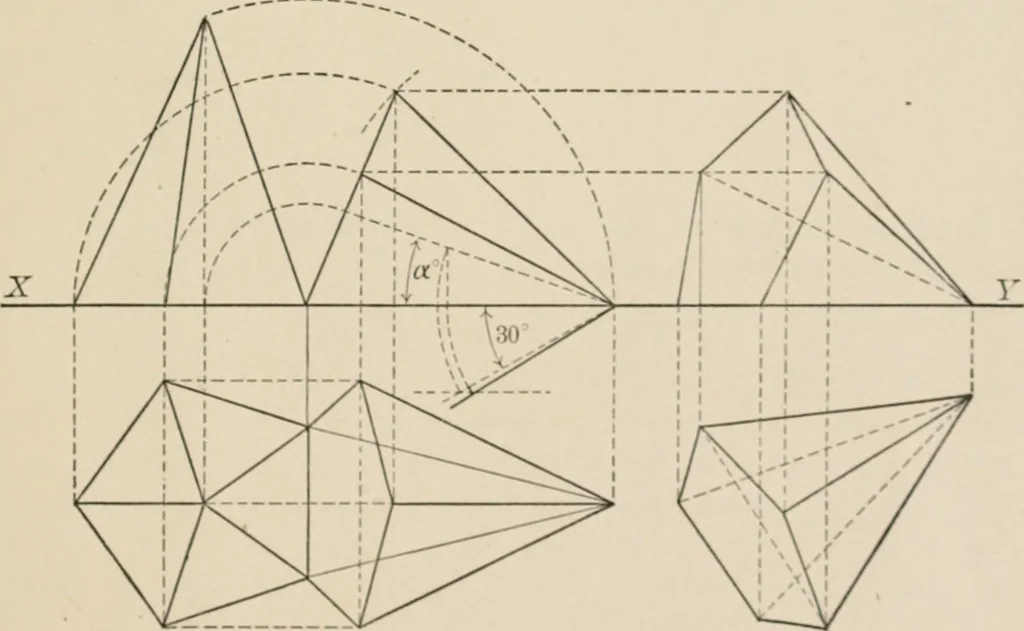

Fig. 3j. In Fig. 33 a regular pentagonal pyramid is made to rest with one of its tri-angular faces in the H.P. and the axis of the solid—the line from its apex to thecentre of its base—is at 30° to the V.P. This means that the compound angle … Fig. must be found for the axis, since there are two angles to be taken into consideration,namely, the angle a° which it makes with the H.P.. and the 30^ angle it makes withthe \.P. In the fmal position, therefore, the plan oi the axis is made parallel tothe arrow line obtained by compounding these…
