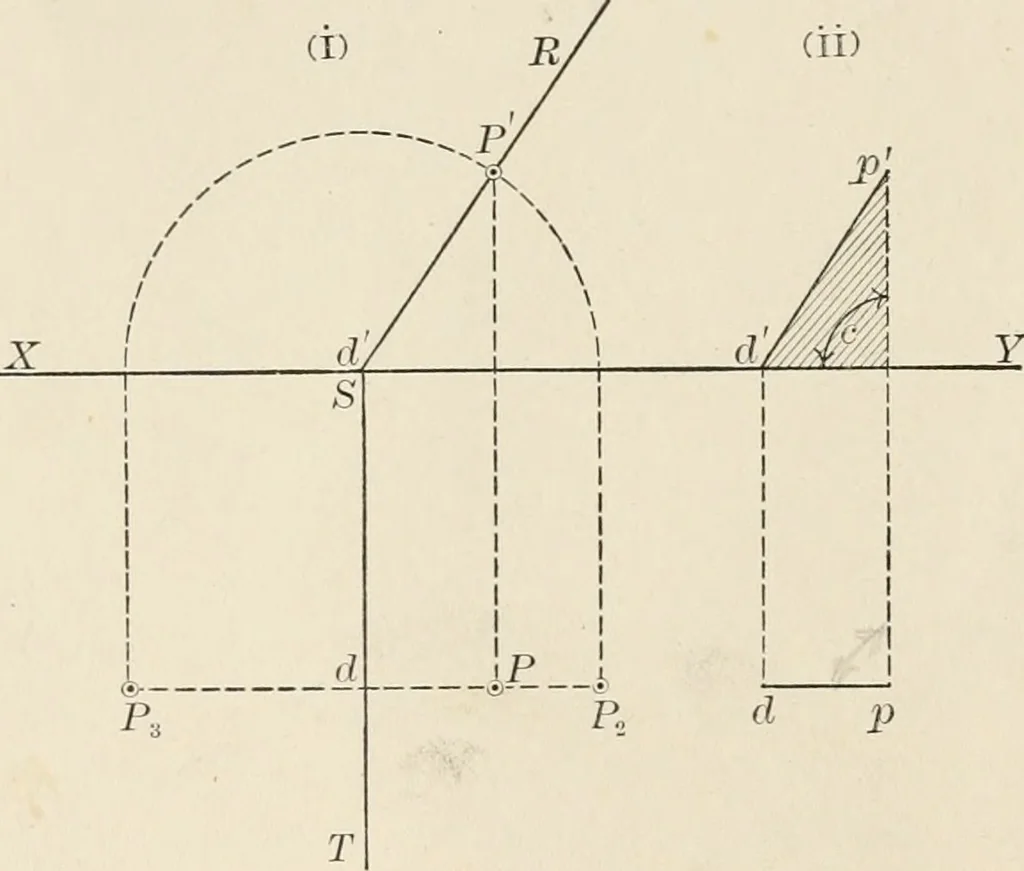

e other exercises, using your best judgment, and work them out for further practice. PART TWO CHAPTER VII RABATTEMENT OF PLANES, AND PROJECTIONS OF FIGURESINVOLVING ITS USE Section 13, The process known as rabattement is that by which a plane ismade to swing on one of its traces, as on a hinge,… … Fig. 42. the plane. In Fig. 42 the plane RST, arranged perpendicularly to the V.P., hasin it a point P. If the plane is made to swing about its trace 5r as a hinge lineuntil it is turned over into the H.P., either on the one side or on the other, it carriesthe point with it, and the points…
