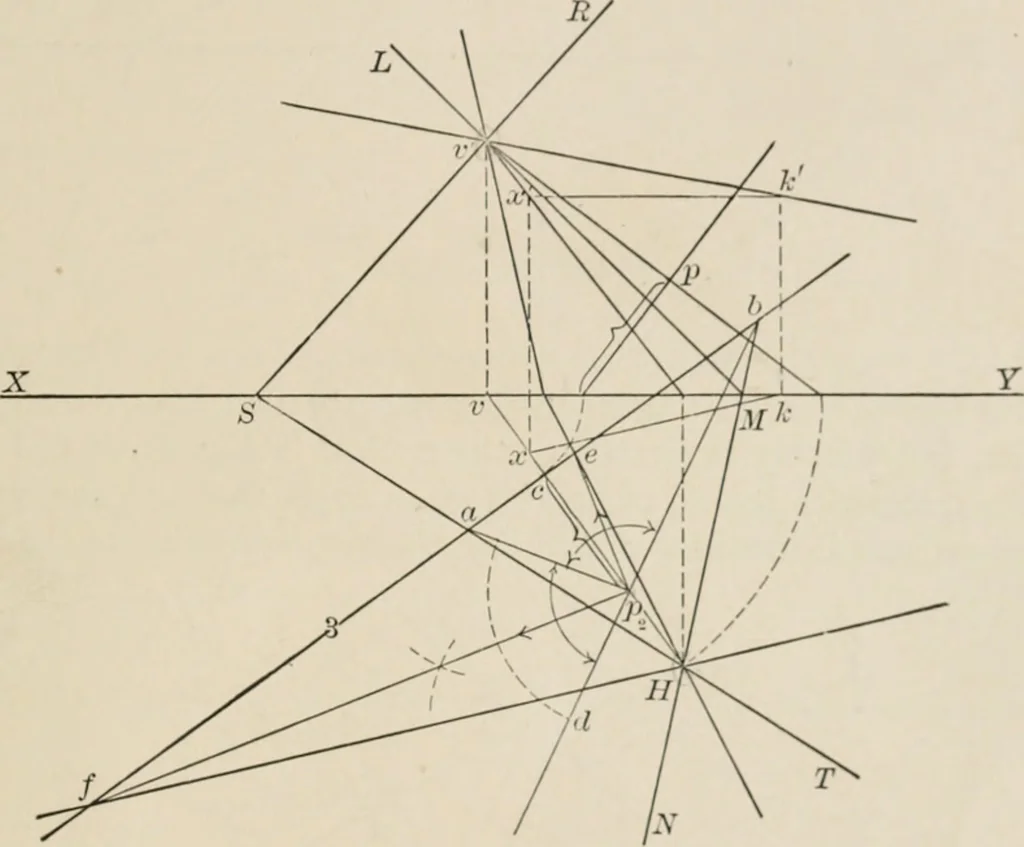

hrough V and //, these points, V and//, are in the traces of the bisecting planes required. The result is. that the linethrough II and c is the H.T., and from where this meets XV a line through -/ isthe V.T., of one of the required planes, while /// is the H.T., and a line throughv to meet JH in… … Fig. 62. on the common intersection line, and a horizontal line on the required plane shouldbe drawn to meet the \.P. at kk. This latter point on the \.P. is in the V.T.required, which is obtained by joining v to k. If the H.T. of this last plane, marked/F, is parallel to AT, of course the \.T.of…
