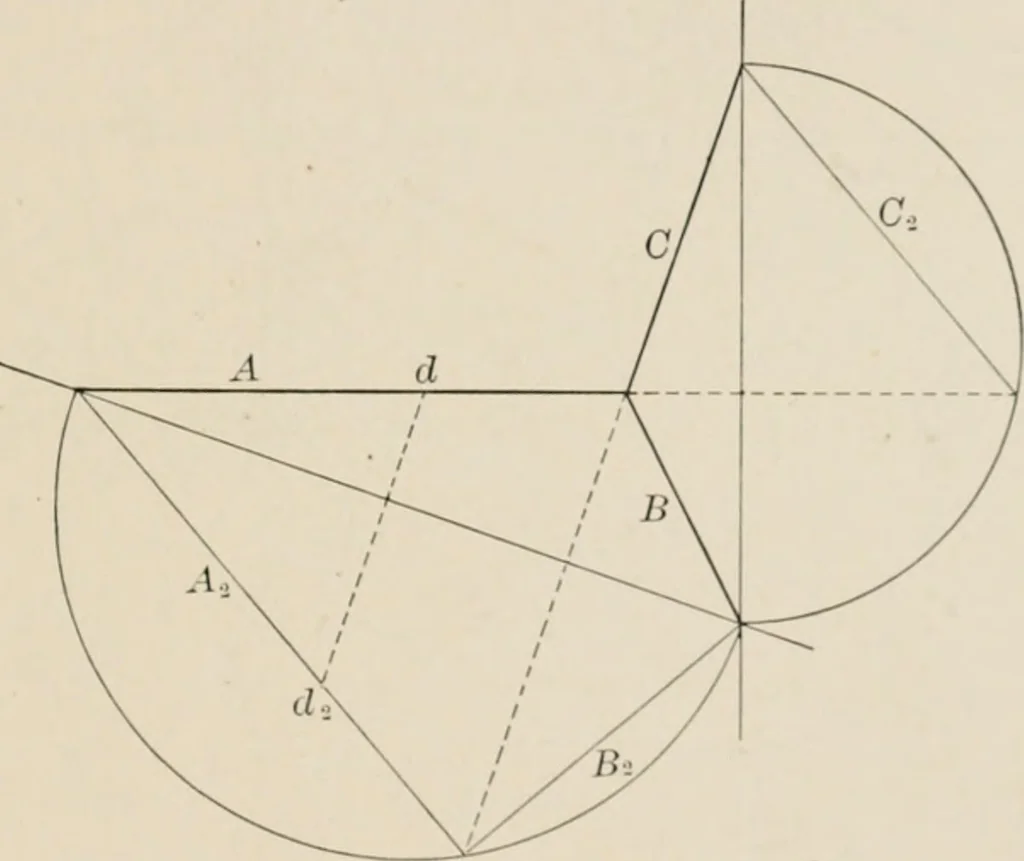

are equally inclined to the projection plane. Thisis therefore referred to as Isometric—a special case of axometric projection. Thescales of measurement along the axes A, B and C in Figs. 71 and 72, however, areall different from one another, so that, for instance, 2 on the axis A is representedby… … FiG. 72. ened view of Fig. 73, (,i). There will be twelve bars of square section, each onerepresented by three lines, as suggested at (ii). There are three directions for theedges of a cube, four edges to each direction, therefore the three axes of projectionmay each contain an edge. Let two of the…
