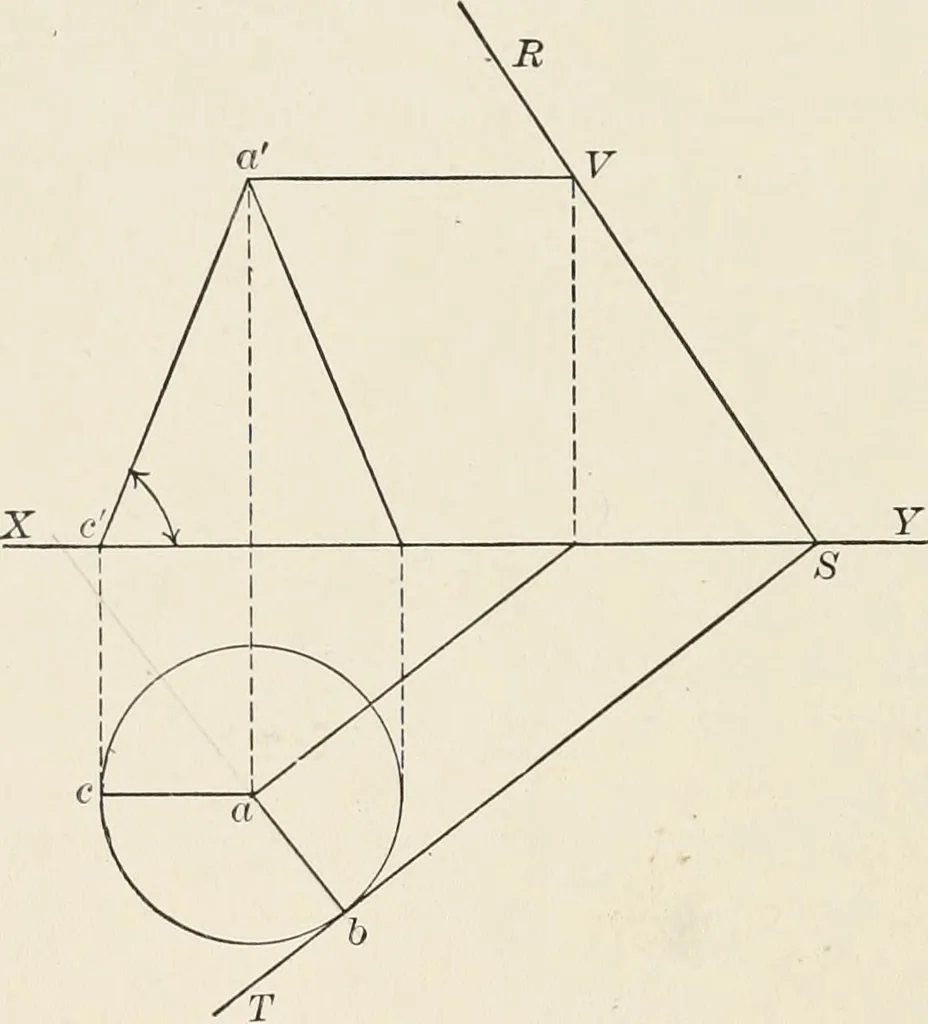

from XY. 4. Find the shadow of a sphere of 2 diameter, having its centre 2 above the H.P. and 2in front of the \.P., when the rays of parallel light are inclined at 45° to the H.P. and 30° tothe V.P. N.B.—The shadow problem here given involves the method discussed in this section. PART THREE… … Fig. 85. of one or of the other, will touch it along a straight hne, and, in the case of thecone, will include its apex. Such a tangent plane may be shown, as usually planesare shown, by its traces, and its traces will be tangential to the curved traces ofthe curved surface of the solid. In the…
