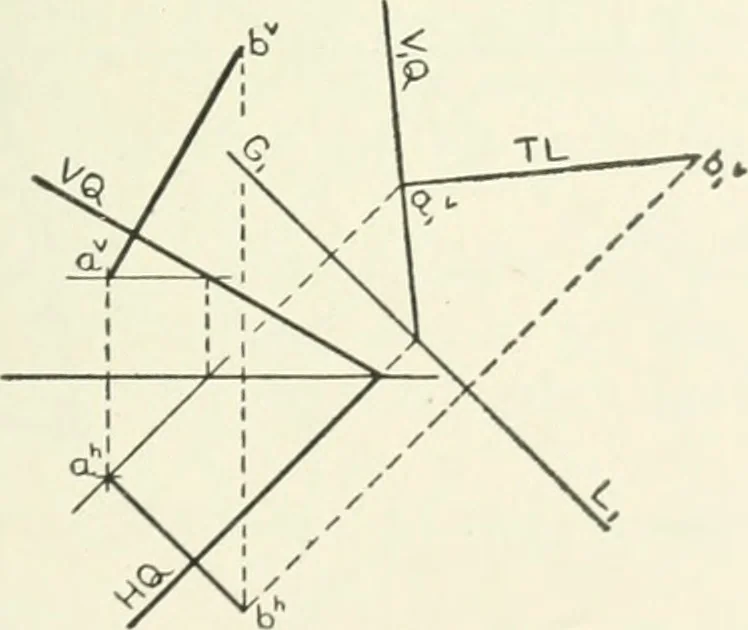

ular to either trace of the givenplane. Find the secondary projection of the given plane andpoint on it. Since the required line is parallel to this plane ofprojection, the secondary projection of the line may be drawnat once, perpendicular to the secondary trace of the plane andof the given… … Vui. -T.l. Project a to axv, and through this point draw the Fi-trace andedge view, V\Q. Draw <W perpendicular to \r,(tK and makeit equal to the given true length. Draw a*6* perpendicular toHQ; locate bh by projection from />,. Project from l>h to 6,making the distance from bv to GL equal…
