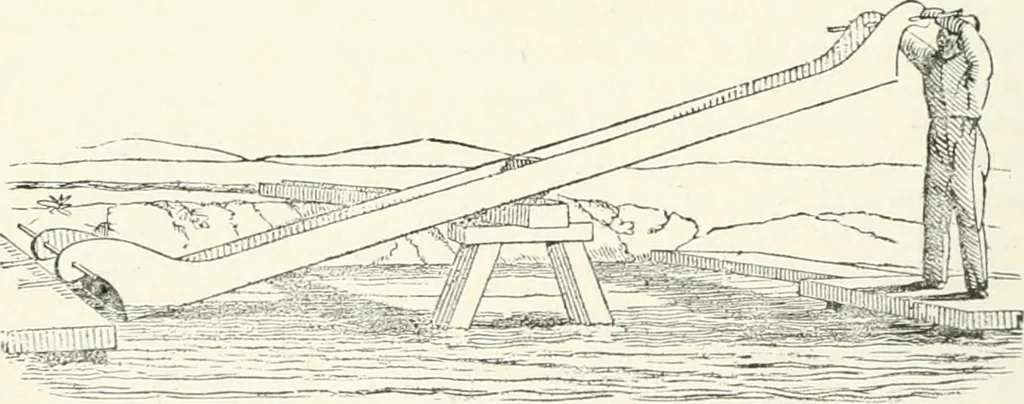

No. 30. Single Gutter. It IS smiply a trough or gutter, the open end of which rests on thebank, over which the wa.er is to be elevated; the other end beingclosed is plunged into the liquid, and then raised till its contents are dis-charced. It ibrms what is called a lever of the second order, the… … No. 81. Double Gutter. This ficrure represents an imprc^vement, being a double gutter, or twoof the former united and placed across a tn^ugh or reservoir designed toreceive the water. A partition is formed in tne centre, and two openingsmade through the bottom on each of its aides, through which…
