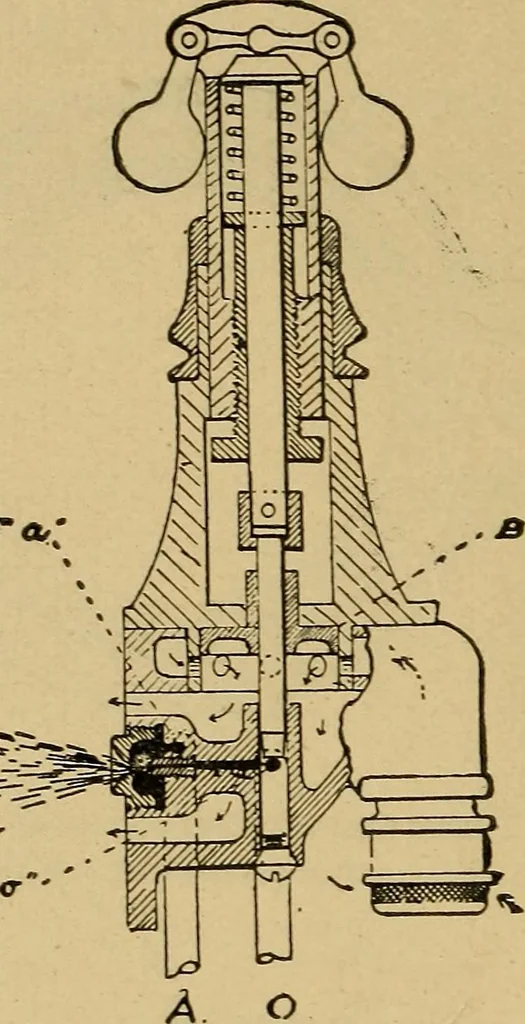

tuated from the cam-shaft. The oil is thus forced tothe sprayer, which device is shown in Fig. 7, where itmeets a further supply of air. The mixing of the airand oil takes place just as both elements are injected 14 OIL ENGINES. into the vaporizing chamber, as shown in Fig. 6. Theheating of the… … A - Aia Pump Coy/zfcr/ov O Oil Tank Coknuc tion • c Oil Passage to SpuAYKiAKe*** Fig. 7. ber, as shown in Fig. 6. On the outward or suctionstroke of the piston the mixture of oil vapor and airalready formed and heated in the vaporizer is drawninto the cylinder through the automatic inlet-valveshown…
