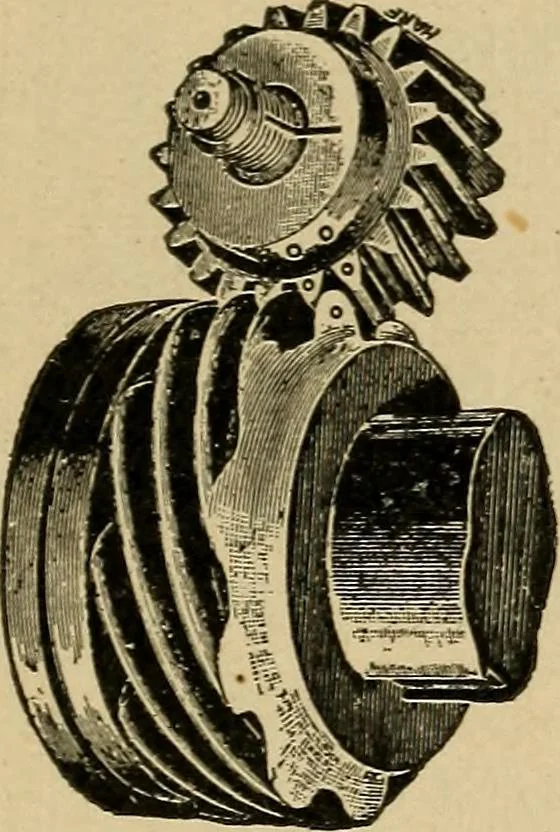

. 43 dimensions in different types of engines; a short pinof large diameter is, however, recommended, the diam-eter being not less than 1.2 times the shaft. (SeeTable I.) The average pressure allowed is 500 lbs.per square inch on the projected area. Valve Mechanisms.—With the Beau de Rochasor… … Fig. 22. to be well adapted for this work. The power necessaryto operate the valves is, in this case, transmitted fromthe crank-shaft by the worm or skew gearing throughthe cam-shaft, with separate cams opening the air andexhaust valves by the operating levers, as shown inFig. 23. Where…
