The design and construction of oil engines; (1900)
Goldingham, Arthur Hugh. [from old catalog] · New York, Spon & Chamberlain; [etc., etc.] · leaf 63

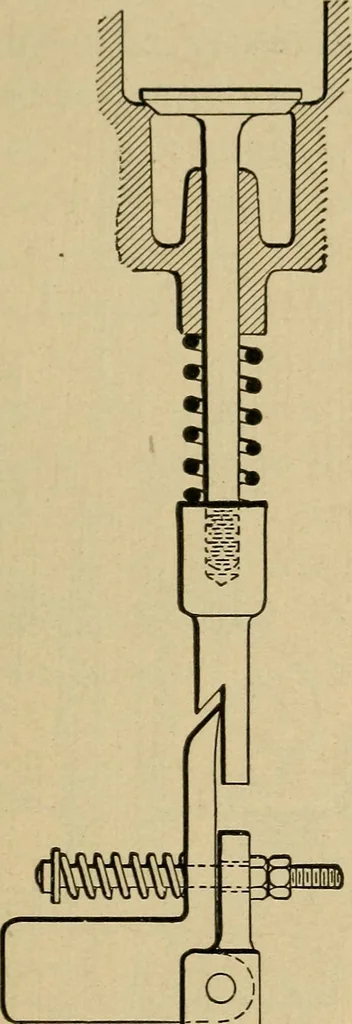

g on the vapor inlet-valve, allowingthis valve to open only when an impulse to the piston isrequired. Engines driving dynamos for electric lighting andrequiring very close regulation are preferably governedby the system of throttling or reducing the explosivepressures in the cylinder. Thus, when… … 1 m Fig. 26. vapor and air is accordingly regulated, and the meaneffective pressure as required is suitably reduced. 48 OIL ENGINES. The indicator diagram illustrates the variation ofthe M. E. P. in the cylinder, as shown in Fig. 25, eachexpansion line registering a different pressure. Noexplosion…
Internal combustion engines
