The design and construction of oil engines; (1900)
Goldingham, Arthur Hugh. [from old catalog] · New York, Spon & Chamberlain; [etc., etc.] · leaf 83

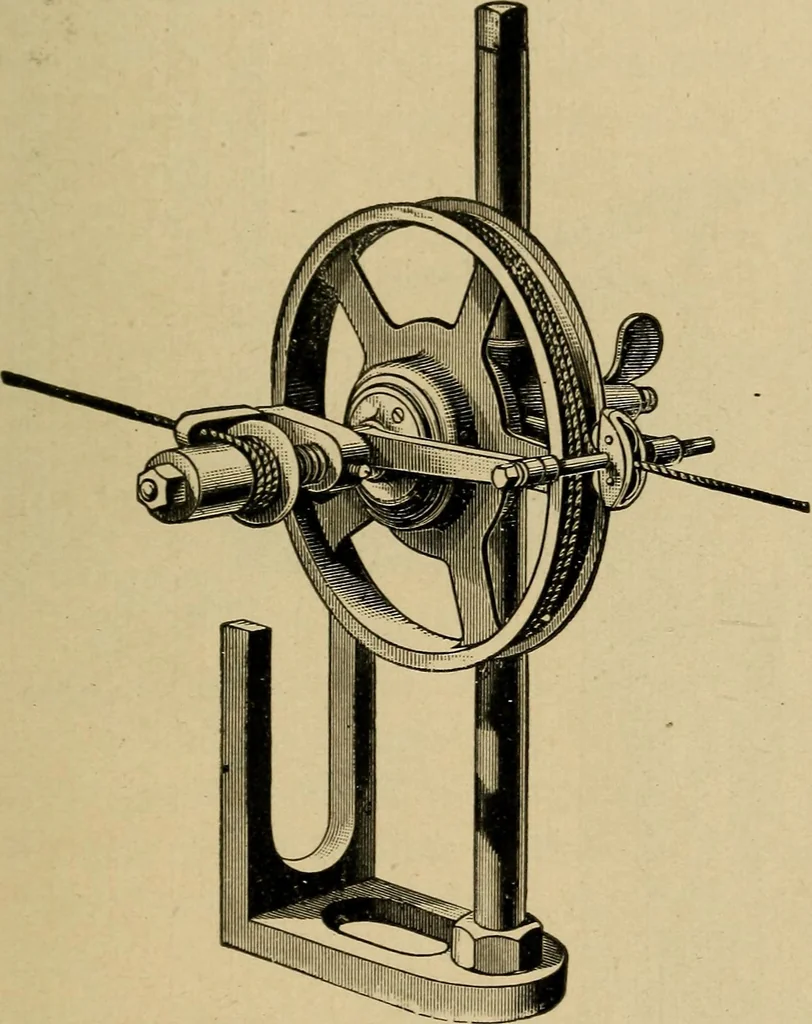

t 3 long. This is accomplished by theuse of a device, as shown in Fig. 35.Indicated H. P. is calculated thus: I. H.P. =- PLAE33,000 P = mean effective pressure in lbs. L = length of stroke in feet. A = area in inches of piston. E = number of explosions per minute. TEST] \<: ENG1 NES. 67 The M.… … Fig. 35- arrangement of the parts of the Crosby gas-engine in-dicator. The cylinder proper is that in which themovement of the piston takes place. The piston isformed from a solid piece of tool steel, and is hardenedto prevent any reduction of its area by wearing. Shal- 68 OIL ENGINES. low channels…
Internal combustion engines
