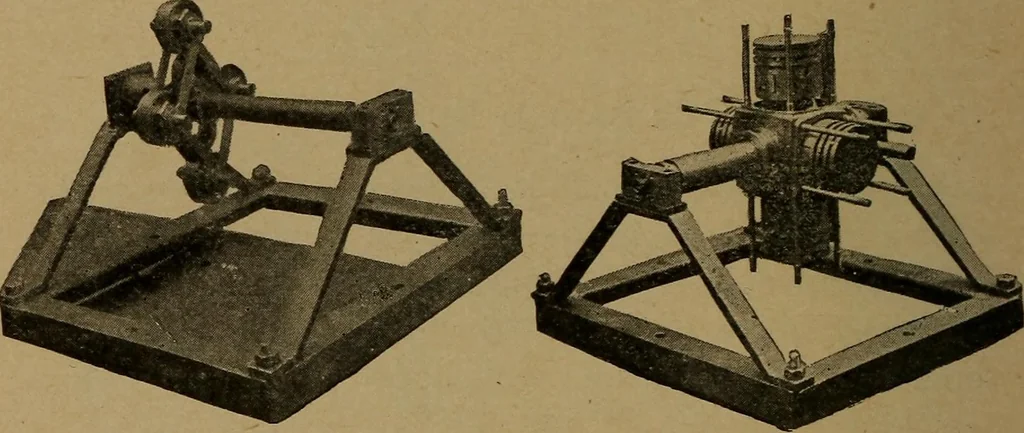

to a minimum, the advantages of this type ofengine are apparent. Fig. 86 shows the engine complete. It will be notedthat there is no fly-wheel, the cylinders themselves 198 OIL ENGINES. revolving around the centre bearing and furnishing thenecessary momentum. The engine works on theOtto, or… … Fig. 87. Fig. 88. 87, instead of the ordinary crank. This mechanism isequivalent to a double-throw crank. Fig. 88 shows the four pistons in position, the cyl-inders having been removed. The air and vapor inlet to the cylinders and theexhaust outlet are effected through the hollow spin-dle on which…
