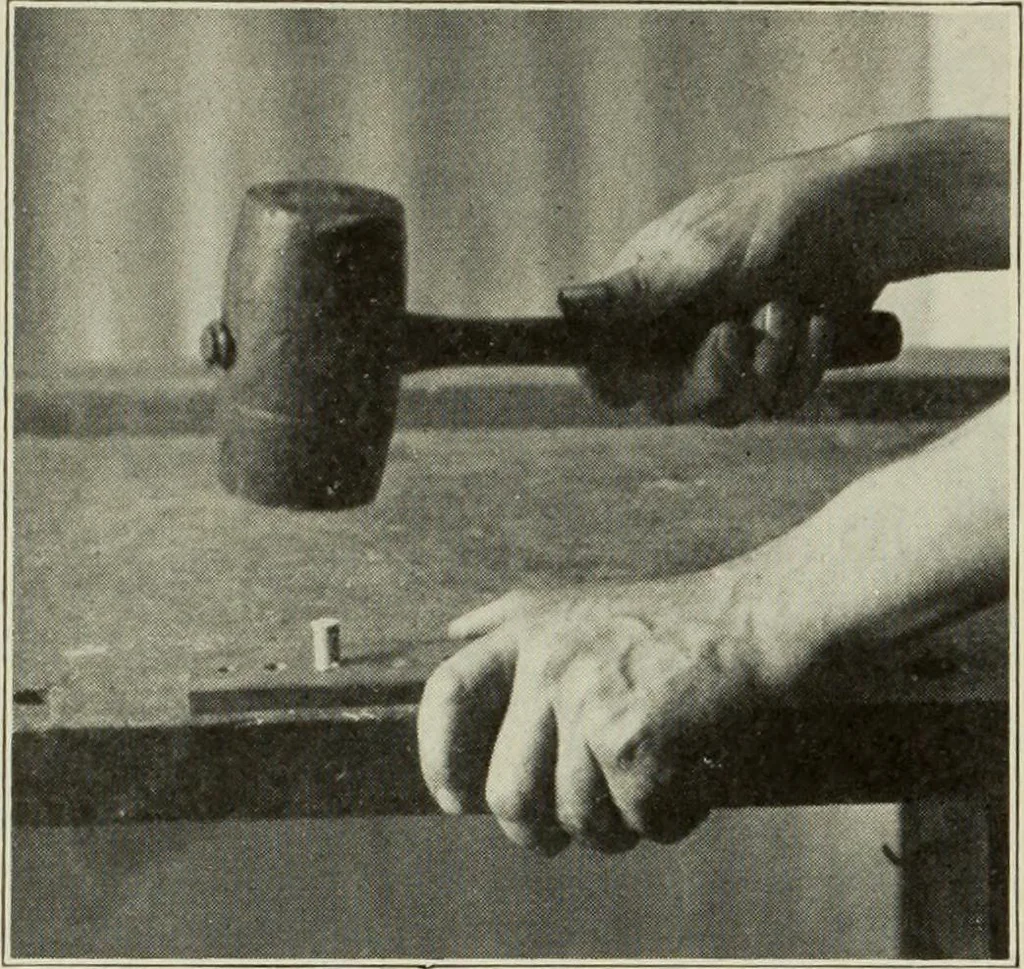

t thestrip on the final blow. The reason why the dowel pin is not made long enough to driveit clear to the bottom of the two inch hole is be-cause the glue at the bottom of the hole may actlike a cushion, which, if the pin is driven home,may force open the joint between the joint andthe stretcher.… … Fig- 132. Driving dowel thrudowel-plate. TT- /f4 Fig. 133. Dowel-pinfor taboret. ^ /- V 4 l ^ <5P < /L — — A;: :; -< /8 ^ ^^3^ Fig 134. Improvised clamp. parts of the dowels to within ^ of the surface, thus: Holding theframe in the vise, as in Fig. 139, lay a piece of wood ^ thick nexteach…
