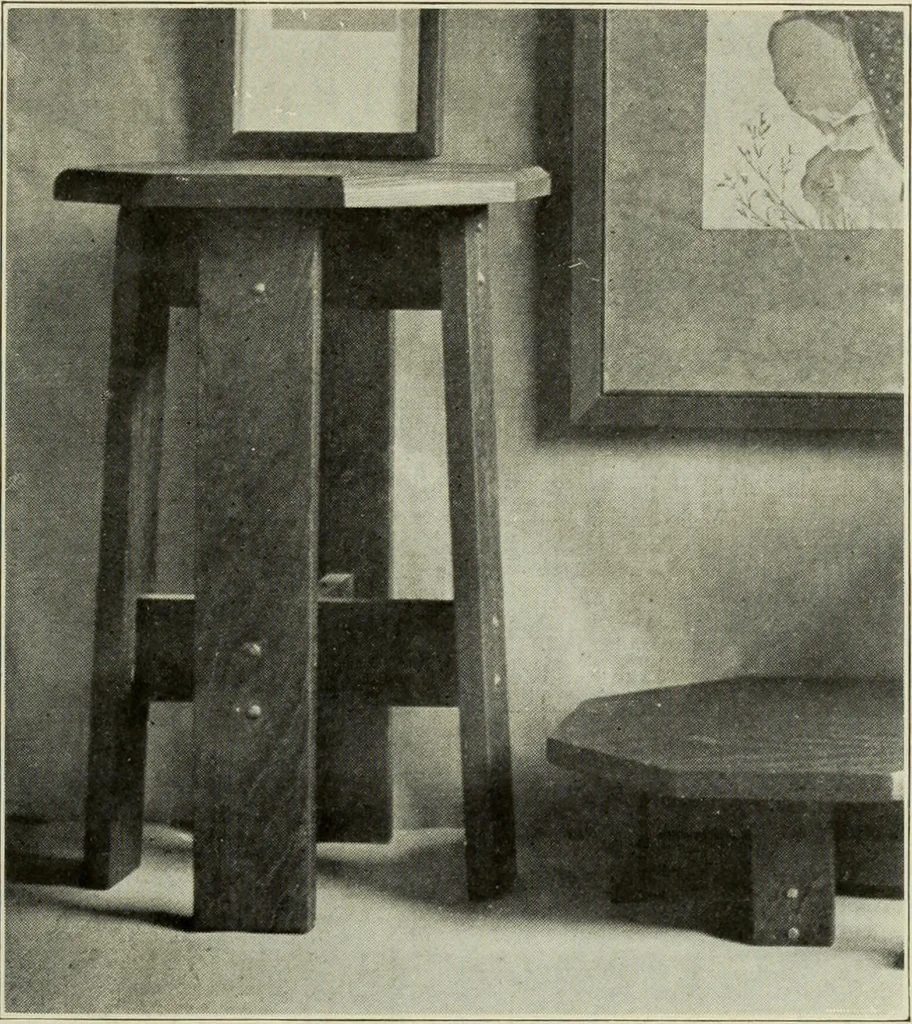

TABORET 113 from the top of the upper stretcher to the bottom of the lowerstretcher to be 13 and the bottom of the lower side of each arm ofthe lower stretcher to be 1 longer than the top of the upper surfaceof the arm of the corresponding upper stretcher. Lay the steel squareon a board with a… … Fig-. 150. Taboret with slanting- legs. the straight edge. This is the angle needed for the ends of the stretch-ers, and also the angle for the tops and bottoms of the legs. (SeeHandworh in Wood, 3rd edition, p. 201, note.) Transfer this angle bymeans of the sliding T-bevel. See Handtuork in Wood,…
