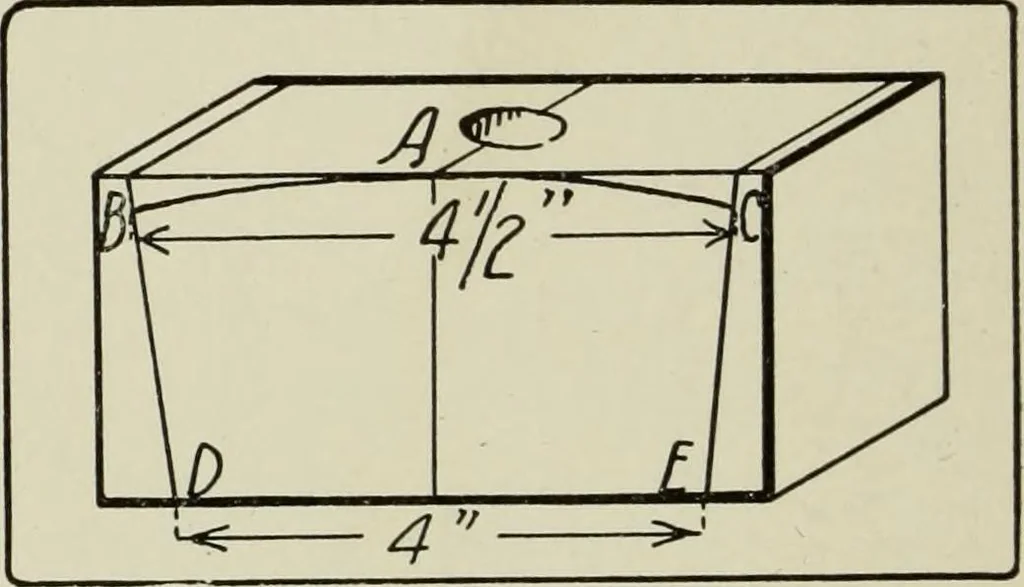

ctingshoulders inside the hole withan inside bevel gouge {Va)- In order that the handlemay be firmly held in the headby means of a wedge, as de-scribed below, it is necessary toenlarge with the inside bevel gouge (M) two sides of the Fig-. ISS. Lay-out of sides of mallel-head. hole in the head at… … MALLET 119 Next lay out, according to the dimensions given in Fig. 154, theshape of the head on the broad side. The curve for the outer edgecan be obtained by making a templet of cardboard or thin wood, thus:The curve is the4^ arc of acircle whose rad-ius is 22. Setthis templet ex-actly in place,as…
