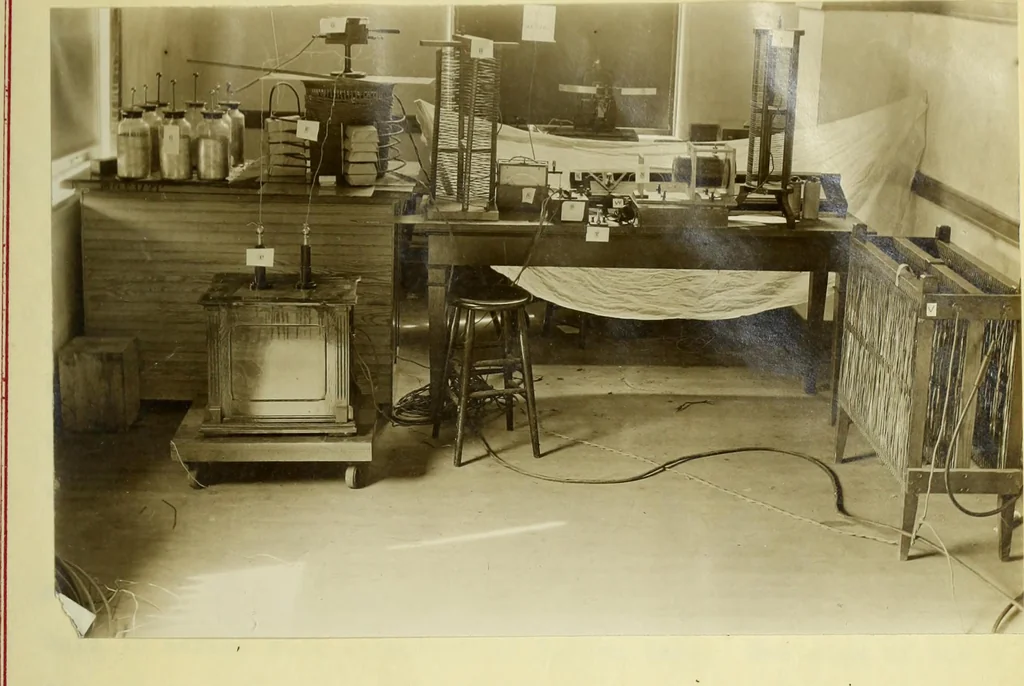

K Pig. 14 The key was made from a block of oak wood six inches longsix inches wide and three and a half inches thick. In the topof the block near the center was chiseled a hole one inch longthree quarters of an inch wide and two and a half inches deep. 20 … Pig 13 p - Tranoformer - Tesla Coil G - Spark Oap R - Sending Inductance A - Hot Wire Ammeter S - Key T - Detector K - Potentiometer W - Telephone Receiver K - Jigger I - Receiving Inductance V - Resistance 21 Over this was placed a hard rubber cover one quarter of an inchthick. One end of a piece…
