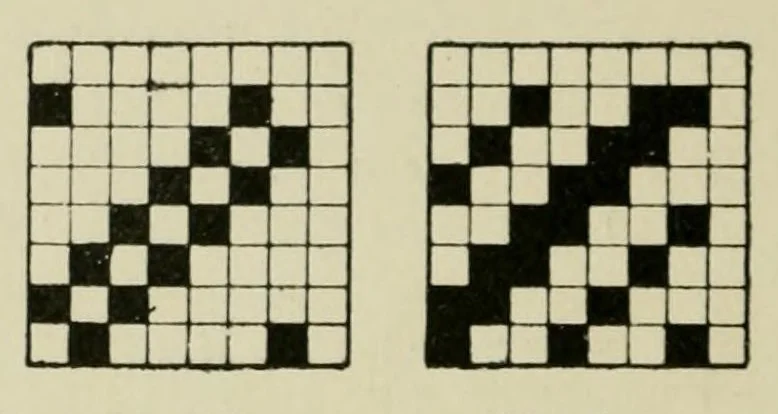

94 Reverse Twills. In all the regular twills, as shown in Figs. 157 to 160, the filling- predominates on the face of the cloth, and the warp on the back of the cloth. Take the 5-harness twill for an example; if the warp is of one color and the filling- another, as there is 1 thread up and 4 threads… … reversing of the 4-harness twill, Fig. 169. Fig.no. and make a stripe of 12 threads warp flush and 12 threads filling flush. In this example (Fig. 173) we notice that it takes 4 extra harnesses, that is, 4-harness for the filling flush and 4-harness for the warp flush weaves. Patterns of this…
