A dictionary of architecture and building; biographical, historical and descriptive (1901)
Sturgis, Russell, 1836-1909 · New York, Macmillan · leaf 554

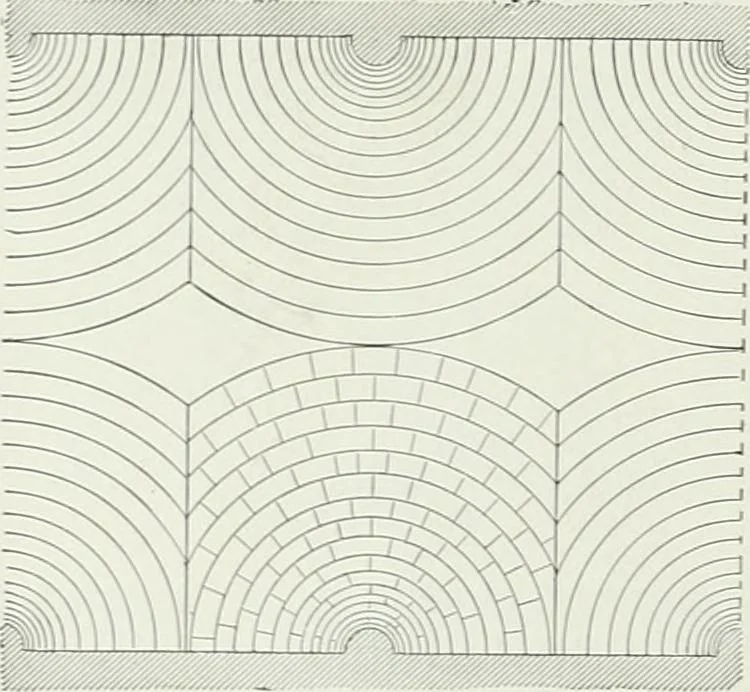

Fig. 38 (PL.iN). also as continuous flying buttresses resisting theoutward thrust of the nave vaults. They arecommon in southeastern France, in the eleventhand twelfth centuries. Figure 5 shows a rampant vault. Figure 6 is a soffit plan of what is known asa skew arch, often used for bridges but… … Fig. 39 (Plan). oblique to the axis. The cross section is semi-circular or semieniptical. The joints arewarped surftiees, usually, and run spirally. An annular vault (Fig. 7) is a barrel vaultwith a curved axis. Its intrados is a portion ofthe surface of a cylindrical ring. An annularvaidt may also…
Architecture
