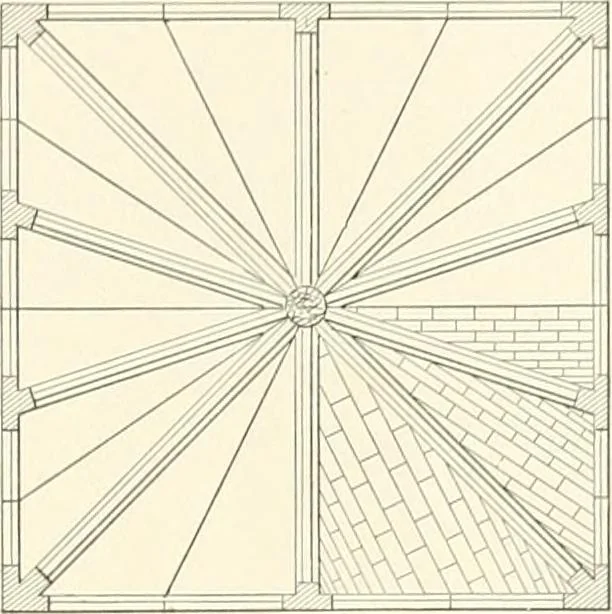

Fig. 7-t. Analysis of Rib Vaulting. A. Simple. Fig. 47. From Castle Campbell, Scotland. Fig. 48. The panel vaulting of the AfterGothic in France. B. Compound. It will be best to classifythese according to the number of ceDs.901 VAULT 1. Tripartite. These cover a triangnlarspace, which usually… … Fig. 7.5 (Plan). (a) With groin rilis only (Fig. 49). (b) With gToin ribs and transverse arches(Fig. 50). From Gerland, France; one of theearliest e.xample.s. Both ribs and arches aresemicircidar, and the vaulting is therefore domi-cal. (c) Groin and wall ribs oidy (Fig. 51). (d) Groin, transverse,…
